Description
Overview & Features

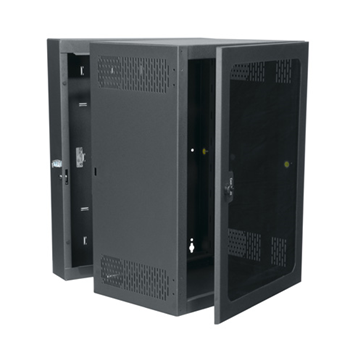

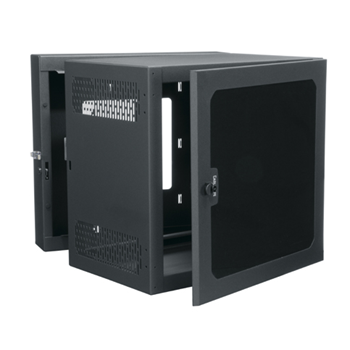

Data Wall Rack with 12-24 threaded rackrail and rear latch lock
Specifically designed for structured cabling, the CWR is a versatile system for mounting multiple patch panels and other voice/data equipment where floor and wall space are at a premium.
- Welded steel construction for strength
- 26” width provides extra space for cables and patching
- Comes standard with adjustable wide-face rackrail
- Locking swing open center section for front and rear access
- Includes a locking/latching plexi front door for added security
- Front door can be easily reversed for left or right hand swing
- Engineered for passive thermal management; optional fan kit available
Dimensions
Depth: 17.67 in (44.88 cm)
Height: 35.38 in (89.87 cm)
Panel Width: 19 in (48.26 cm)
Primary Package Weight: 105 lbs (47.63 kg)
Rack Units: 18 RU
UL Load Capacity: 200 lbs (90.72 kg)
Usable Depth: 15 in (38.1 cm)
Usable Height: 31.5 in (80.01 cm)
Width: 26 in (66.04 cm)
