Description
Overview & Features

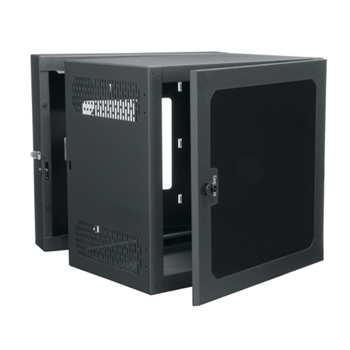

Data Wall Rack with 12-24 threaded rackrail and rear latch lock
Specifically designed for structured cabling, the CWR is a versatile system for mounting multiple patch panels and other voice/data equipment where floor and wall space are at a premium.
- Welded steel construction for strength
- 26” width provides extra space for cables and patching
- Comes standard with adjustable wide-face rackrail
- Locking swing open center section for front and rear access
- Includes a locking/latching plexi front door for added security
- Front door can be easily reversed for left or right hand swing
- Engineered for passive thermal management; optional fan kit available
- Bag of 50 mounting screws included
Dimensions & Characteristics
Depth: 22.67 in (57.58 cm)
Height: 24.88 in (63.2 cm)
Panel Width: 19 in (48.26 cm)
Primary Package Weight: 101 lbs (45.81 kg)
Rack Units: 12 RU
UL Load Capacity: 200 lbs (90.72 kg)
Usable Depth: 20 in (50.8 cm)
Usable Height: 21 in (53.34 cm)
Width: 26 in (66.04 cm)
Door Type: Plexi Door
Material: Steel
Rack Rail Type: 12-24
Weight Capacity: 200 lbs (90.72 kg)
