Product Overview
GENERAL INFO
Finish: Black Wood Grain Melamine
TECHNICAL INFORMATION
Rackrail Type: 10-32
Static Load Capacity: 250
Material: Wood
Mounting: Horizontal
DIMENSIONS
Usable Depth: 27.5
Usable Height: 35
Capacity Weight (US): 250
Depth (US): 28
Height (US): 36.63
Width (US): 20.7
Rack Units: 20

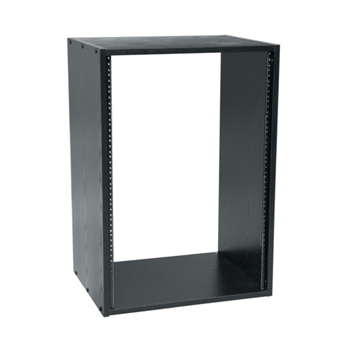

EIA compliant Wooden Studio Rack shall be Middle Atlantic Products model # BRK20-28. BRK20-28 shall have 20 useable rackspaces with a 36.63" overall height. BRK20-28 shall have a 28” depth. Studio rack shall be constructed of 3/4” furniture grade MDF board and shall feature a high quality black wood grain laminate finish. Rackrail shall be equipped with one set of 11-gauge steel with tapped 10-32 holes in universal EIA spacing (2 sets included). Assembly hardware shall be ¼ turn bolts with ¼ turn cams. Studio rack shall be rated to 250 lb. weight capacity. Studio rack shall be GREENGUARD Indoor Air Quality Certified for Children and Schools. Studio Rack shall be RoHS EU Directive 2002/95/EC compliant. Studio rack shall be manufactured by an ISO 9001 and ISO 14001 registered company. Studio rack shall be warrantied to be free from defects in material or workmanship under normal use and conditions for a period of 7 years.
FEATURES & BENEFITS
- Ready-to-assemble design allows for flat shipment
- Easily assembled with included hardware
- Includes 10-32 threaded front and rear rackrail
