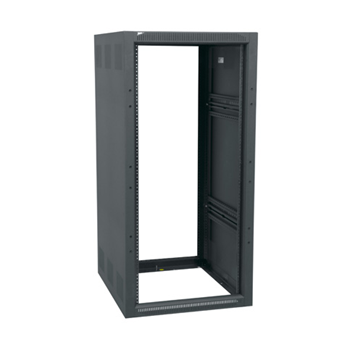

Product Overview

GENERAL INFO:

Finish: Black Powder Coat

UL Standards Tested: UL1678

LISTING AGENCIES/THIRD PARTY CERTIFICATIONS:

ASCE: 7-10

RoHS: Yes

Greenguard: Yes

UL Listing No: E173107

DIMENSIONS:

Usable Depth: 24.4

Usable Height: 43.875

Panel Width: 19

Capacity Weight (US): 12000

Depth (US): 27

Height (US): 47.875

Width (US): 23

Rack Units: 25

TECHNICAL INFORMATION:

Rackrail Type: 10-32

Seismic Load Capacity: 1175

UL Load Capacity: 3000

Material: Steel

Mounting: Horizontal

Seismic Rating: Yes

FEATURES & BENEFITS

Why is BGR the #1 AV Enclosure? The BGR is designed to hold 20% more weight but be lighter than its predecessors. It offers more space efficiency for equipment mounting and cable management with Lever Lock™. It has options designed for system future proofing without disturbing the existing system. BGR is designed for today and tomorrow’s AV applications and with multiple form factors it supports multi-rack systems, single rack systems or a mobile systems.

The 23” width gives you extra room in “no-man’s land” for front-to-back cable management and for mounting small devices on Lever Lock™ freeing up valuable rackspace.
Breakthrough design provides high strength without extra weight
UL 1678, Seismic and OSHPD OPM Certified
Wide open top and bottom offer many cabling and cooling options
Accepts brush grommet rear door kit for a large cable passage without fishing
Pre-threaded ganging holes allow ganging while enclosure is fully loaded
Standard front and rear adjustable 10-32 threaded rackrail with numbered spaces
