Product Overview
Overview

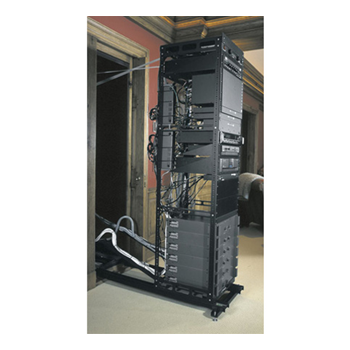

Specify an AXS when installing audio and video equipment flush into a wall or cabinet; ideal for larger systems. The patented pull-out design provides access to rear equipment connections. Entire bays of equipment can be rolled out for service and installation flexibility.
- Unique interlocking corner joint for exceptional strength and easy assembly
- Service stand raises service tracks to bottom of AXS, allowing it to pull out
- Service tracks include built-in level to save time
- Removable rack frame can be integrated off-site to save time
- Articulating cable carriers provide effective cable management (non-rotating models only)
- Standard fixed front and rear 10-32 threaded rackrail with numbered spaces
Dimensions
Depth: 20 in (50.8 cm)
Extension Length: 48 in (121.92 cm)
Height: 30.94 in (78.59 cm)
Primary Package Weight: 61.75 lbs (28.01 kg)
Rack Units: 15 RU
Usable Depth: 20 in (50.8 cm)
Usable Height: 26.25 in (66.68 cm)
Width: 19.25 in (48.9 cm)
