Description
Overview

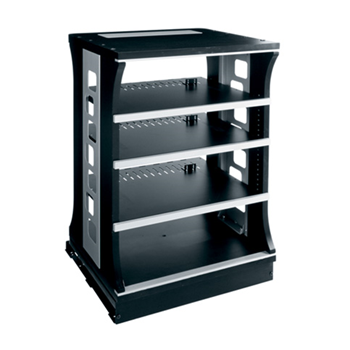

Specify an ASR for installing non-rackmount audio and video equipment in less visible locations in custom cabinetry and behind closed doors. Ideal for smaller systems or when an open shelf system is desired and the ability to customize shelf fronts is not required. Slide out and rotating functionality provides enhanced access to rear equipment connections.
- Self-leveling shelves are simple to install and are adjustable in 3/4” increments
- Ships ready-to-assemble to save space
- Included cable management system facilitates a clean, organized installation
Dimensions
Depth: 18 in (45.72 cm)
Height: 29.85 in (75.82 cm)
Panel Width: 19 in (48.26 cm)
Primary Package Weight: 68 lbs (30.84 kg)
Usable Depth: 16.13 in (40.97 cm)
Usable Height: 23.13 in (58.75 cm)
Width: 18.25 in (46.36 cm)
Weight: 100 lbs
