Product Overview
DESCRIPTION

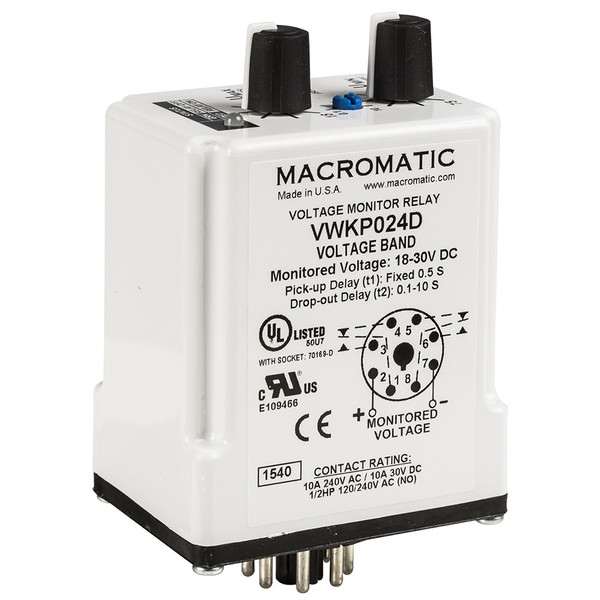

Voltage band relay for 24 VDC, 10 Amp relay, DPDT, Adj Pick up and Drop out, Adj dropout delay 0.1-10 seconds, plug-in
The relay energizes (and the LED is Red) when the monitored voltage is between the over and under voltage settings. The relay de-energizes (and the LED is Green) when the monitored voltage falls outside the over or under voltage settings for a period longer than the drop-out time delay (t), which is adjustable between 0.1-10 seconds. The relay re-energizes when the monitored voltage returns to a value between the over and under voltage settings for a period longer than the fixed pick-up time delay of 0.5 seconds.
FEATURES
- Monitors AC single phase and DC voltages
- Provides voltage band (window) protection
- True RMS Sensing ensures more accurate sensing
- Wide range of user-adjustable Over Voltage and Under Voltage settings
- Adjustable time delay on drop-out
- Pilot Duty Rating
- LED indicates output relay status
