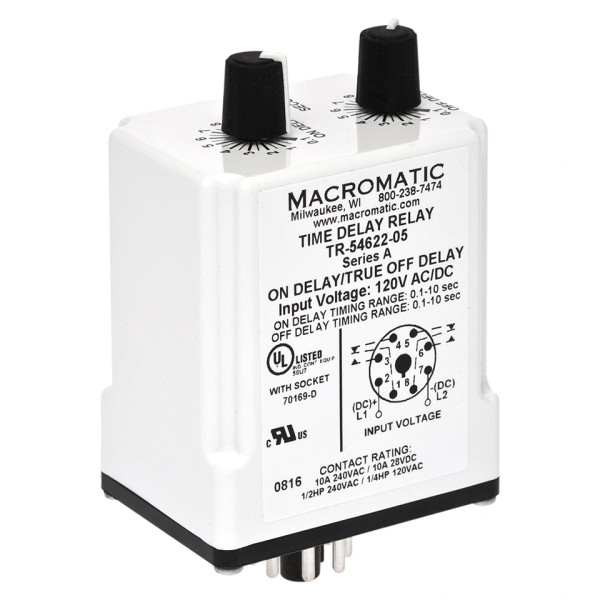

Description
Description of Function
Upon application of control voltage, the time delay (t1) begins. At the end of the time delay (t1), the output is energized and remains in the condition for the time delay (t2). At the end of this time delay (t2), the output is de-energized. Input voltage must be removed to reset the time delay relay.
Features
- Onboard & remote adjustable or fixed time delays from 0.05 seconds to 2 hours
- Independently adjustable ON & OFF times
- Uses industry-standard 8 pin octal sockets
- 10A DPDT output contacts
- Pilot Duty Rating
Specifications
- Function: Delayed Interval
- CONTROL VOLTAGE: 120V AC/DC
- Output: 10A DPDT
- TIMING RANGE: 0.05 – 5 Sec
- TIMING RANGE 2: 0.05 – 5 Sec
- MOUNT: 8-Pin Socket
- Setting Adjustment: Analog
- REMOTE POTENTIOMETER: Consult Factory
- REMOTE POTENTIOMETER 2: Consult Factory
- Enclosure Style: Plug-in
- Configuration / Contact Rating: DPDT 10A @ 240V AC / 10A @ 30V DC, 1/2HP @ 120/240V AC (N.O.), 1/3HP @ 120/240V AC (N.C.), B300 & R300
- Approvals: UL Recognized for the U.S. and Canada, CE
- AC Operation: +10/-15% of nominal at 50/60 Hz
- DC Operation: +10/-15% of nominal
- Load (Burden): 2 VA
- Setting Accuracy: Maximum Setting (Adjustable): +5%, -0%
- Setting Accuracy: Minimum Setting (Adjustable): +0%, -50%
- Fixed: ±2% or 50ms, whichever is greater
- Repeat Accuracy: ±0.1% or ±0.04 seconds, whichever is greater
- Reset Time: 0.1 Seconds
- Start-up Time: 0.05 Seconds
- Maintain Function Time: 0.01 Seconds
- Temperature: Operating: -28° to 65° C (-18° to 149° F)
- Temperature: Storage: -40° to 85° C (-40° to 185° F)
- Life: Mechanical: 10,000,000 operations
- Life: Full Load: 100,000 operations
