DESCRIPTION

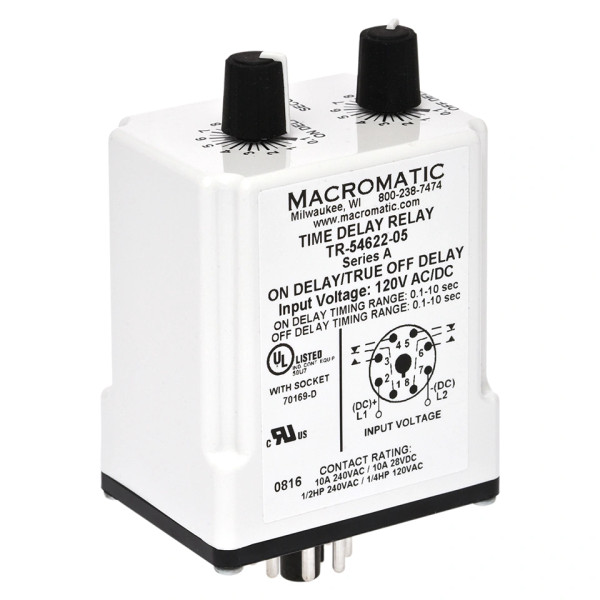

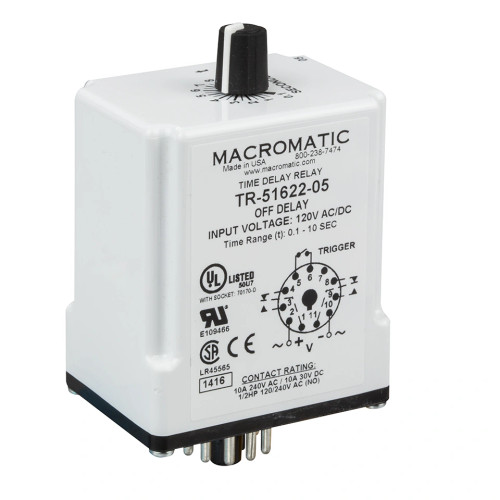

Time Delay Relay; Plug-in; On Delay/True Off Delay; 120V AC/DC; 10A DPDT; 0.1-10 Sec. Timing
Upon application of input voltage, a preset delay begins (T1). At the end of the preset delay, the relay is energized. When the input voltage is removed, the relay contacts remain energized for a second, independently adjustable preset time (T2). At the end of the second preset time, the relay is de-energized. Voltage must be applied for a minimum of 0.1 second to assure proper operation. Any application of the input voltage during the time (T2) will keep the relay energized & reset T2. When input voltage is removed, the relay contacts remain energized for the full time (T2). No external trigger switch is required.
FEATURES
- Each unit has a single timing range
- Choose from 11 separate timing ranges from 0.02 Seconds to 2 Hours
- 10A DPDT output contacts (selected functions that are normally offered with 11 pin DPDT output are also available in 8 pin SPDT versions)
- ON & OFF times on dual timer products are independently adjustable (contact Macromatic for information on ordering dual timer units with different ON & OFF time ranges)
- Pilot Duty Rating
