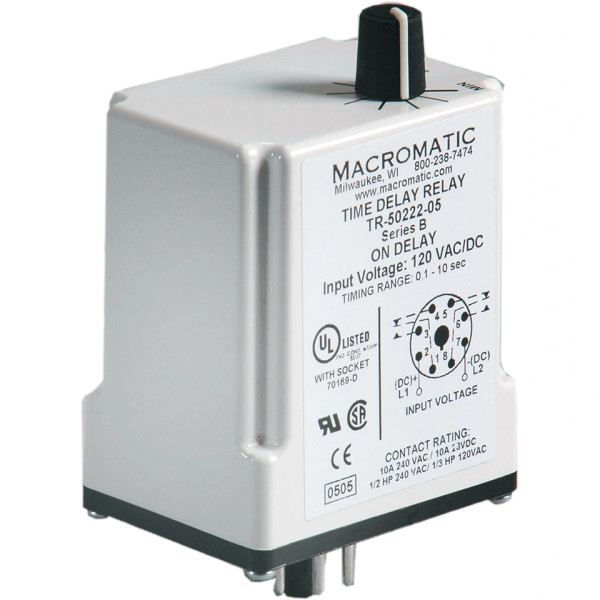

Description
Description of Function
Upon application of control voltage, the time delay relay is ready to accept a trigger. When the trigger is applied, the output is energized. Upon removal of the trigger, the time delay (t) begins. At the end of the time delay (t), the output is de-energized. Any application of the trigger during the time delay will reset the time delay (t) and the output remains energized.
Features
- Onboard & remote adjustable or fixed time delays from 0.05 seconds to 2 hours
- Uses industry-standard 8 pin octal sockets
- 10A SPDT output contacts
- Pilot Duty Rating
Specifications
- Function: Off Delay (Power Trigger)
- CONTROL VOLTAGE: 120V AC/DC
- Output: 10A SPDT
- TIMING RANGE: 3 – 300 Sec
- MOUNT: 8-Pin Socket
- Setting Adjustment: Analog
- REMOTE POTENTIOMETER: Consult Factory
- REMOTE POTENTIOMETER 2: Consult Factory
- Enclosure Style: Plug-in
- Configuration / Contact Rating: SPDT 10A @ 240V AC / 10A @ 30V DC, 1/2HP @ 120/240V AC (N.O.), 1/3HP @ 120/240V AC (N.C.), B300 & R300
- Approvals: UL Recognized for the U.S. and Canada, CE
- AC Operation: +10/-15% of nominal at 50/60 Hz
- DC Operation: +10/-15% of nominal
- Load (Burden): 2 VA
- Setting Accuracy: Maximum Setting (Adjustable): +5%, -0%
- Setting Accuracy: Minimum Setting (Adjustable): +0%, -50%
- Fixed: ±2% or 50ms, whichever is greater
- Repeat Accuracy: ±0.1% or ±0.04 seconds, whichever is greater
- Reset Time: 0.04 Seconds
- Start-up Time: 0.05 Seconds
- Maintain Function Time: 0.01 Seconds
- Temperature: Operating: -28° to 65° C (-18° to 149° F)
- Temperature: Storage: -40° to 85° C (-40° to 185° F)
- Life: Mechanical: 10,000,000 operations
- Life: Full Load: 100,000 operations
