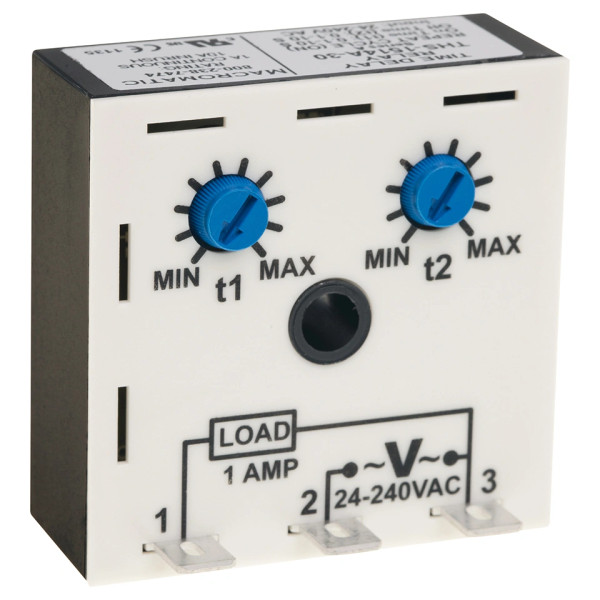

Timer, Delayed Interval, 24-240VAC, 1 amp SPNO, 0.1 - 10 minutes
Upon application of input voltage, the time delay (t1) begins. At the end of the time delay (t1), the output is energized and remains in that condition for the time delay (t2). At the end of this time delay (t2), the output is de-energized. Input voltage must be removed to reset the time delay relay.
FEATURES
- Cost effective design & compact 2" x 2" enclosure are ideal for industrial applications
- Microprocessor-based design for reliable performance & maximum flexibility
- Encapsulated for protection against harsh environments
- Normally Open output rated 1A continuous/10A inrush is perfect for high duty cycle/long life applications
- Universal input voltage of 24-240VAC or 12-125VDC
- Onboard & remote adjustable or fixed time delays from 0.01 seconds to 100 hours
- Pilot Duty Rating
