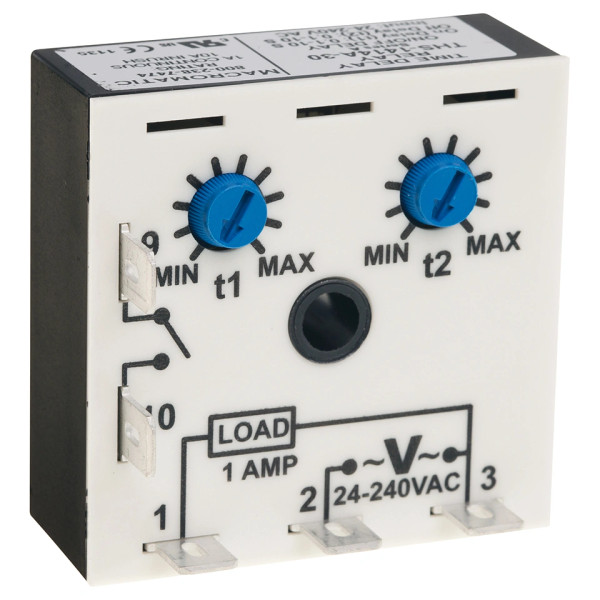

Description
Description of Function
Upon application of control voltage, the time delay relay is ready to accept a trigger. When the trigger is applied, the time delay (t1) begins. At the end of the time delay (t1), the output is energized. When the trigger is removed, the output contacts remain energized for the time delay (t2). At the end of the time delay (t2), the output is de-energized & the time delay relay is ready to accept another trigger. If the trigger is removed during time delay period (t1), the output will remain de-energized and time delay (t1) will reset. If the trigger is re-applied during time delay period (t2), the output will remain energized and the time delay (t2) will reset.
Features
- Cost effective design & compact 2″ x 2″ enclosure are ideal for volume OEM applications
- Microprocessor-based design for reliable performance & maximum flexibility
- Encapsulated for protection against harsh environments
- Output rated 1A continuous/10A inrush is perfect for high duty cycle/long life applications
- Onboard and/or remote adjustable or fixed time delays from 0.01 seconds to 100 hours
- Built in load suppression eliminates need for separate protection
Specifications
- Function: On Delay / Off Delay (Switch Trigger)
- CONTROL VOLTAGE: 12-125V DC
- Output: 1A SPNO (Solid State)
- TIMING RANGE: 1 – 100 Hrs
- TIMING RANGE 2: 1 – 100 Hrs
- MOUNT: Single Screw Mounting
- Setting Adjustment: Analog
- REMOTE POTENTIOMETER: Consult Factory
- REMOTE POTENTIOMETER 2: Consult Factory
- Enclosure Style: Encapsulated
- Configuration / Contact Rating: SPNO / Solid State 1A Continuous, 10A Inrush @ 65° C
- Approvals: UL Recognized for the U.S. and Canada, CE
- Voltage Tolerance: +10/-15% of nominal
- Load (Burden): 1 VA
- Maximum Setting (Adjustable): +5%, -0%
- Minimum Setting (Adjustable): +0%, -50%
- Fixed Time Delay: ±2% or ±50ms, whichever is greater
- Repeat Accuracy: ±0.1% or ±0.04 seconds, whichever is greater
- Reset Time: 0.04 Seconds
- Life: No predictable failure if used within operating parameters
- Leakage Current (OFF-State): <5 mA @ 240VAC
- Minimum Load Current: 20mA
- Effective Voltage Drop (ON-State): Maximum 1.6V @ 1A for all voltages
- Operating: -28° to 65°C (-18° to 149°F)
- Storage: -40° to 85°C (-40° to 185°F)
- Mounting: Surface with one #8 or #10 screw and a maximum tightening torque of 15 in-lbs
- Termination: 0.25″ male quick-connect terminals
