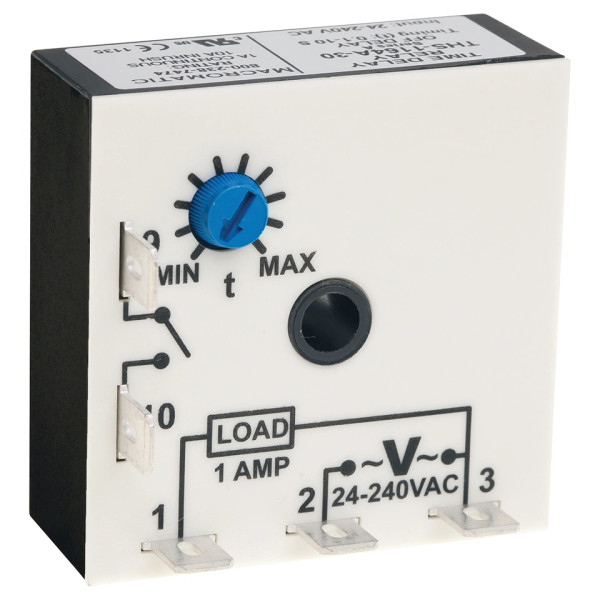

Description
Description of Function
Upon application of control voltage, the time delay is ready to accept a trigger. When the trigger is applied, the time delay (t) begins. At the end of the time delay (t), the output is energized and remains in that condition as long as both the trigger and control voltage remain. If the trigger is removed during the time delay (t), the output remains de-energized & the time delay (t) is reset.
Features
- Cost effective design & compact 2″ x 2″ enclosure are ideal for volume OEM applications
- Microprocessor-based design for reliable performance & maximum flexibility
- Encapsulated for protection against harsh environments
- Output rated 1A continuous/10A inrush is perfect for high duty cycle/long life applications
- Onboard and/or remote adjustable or fixed time delays from 0.01 seconds to 100 hours
- Built in load suppression eliminates need for separate protection
Specifications
- Function: On Delay (Switch Trigger)
- CONTROL VOLTAGE: 12-125V DC
- Output: 1A SPNO (Solid State)
- TIMING RANGE: 1 – 100 Sec
- MOUNT: Single Screw Mounting
- Setting Adjustment: Analog
- Options: Single Pin Trigger
- REMOTE POTENTIOMETER: Consult Factory
- Enclosure Style: Encapsulated
- Configuration / Contact Rating: SPNO / Solid State 1A Continuous, 10A Inrush @ 65° C
- Approvals: UL Recognized for the U.S. and Canada, CE
- Voltage Tolerance: +10/-15% of nominal
- Load (Burden): 1 VA
- Setting Accuracy: Maximum Setting (Adjustable): +5%, -0%
- Setting Accuracy: Minimum Setting (Adjustable): +0%, -50%
- Fixed Time Delay: ±2% or ±50ms, whichever is greater
- Repeat Accuracy: ±0.1% or ±0.04 seconds, whichever is greater
- Reset Time: 0.04 Seconds
- Life: No predictable failure if used within operating parameters
- Leakage Current (OFF-State): <5 mA @ 240VAC
- Minimum Load Current: 20mA
- Effective Voltage Drop (ON-State): Maximum 1.6V @ 1A for all voltages
- Temperature: Operating: -28° to 65°C (-18° to 149°F)
- Temperature: Storage: -40° to 85°C (-40° to 185°F)
- Mounting: Surface with one #8 or #10 screw and a maximum tightening torque of 15 in-lbs
- Termination: 0.25″ male quick-connect terminals
