DESCRIPTIPN

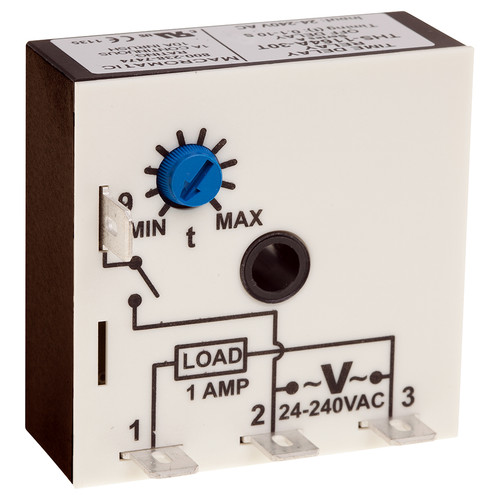

Timer, Triggered On Delay, 24-240VAC, 1 amp SPNO, 1 - 100 second
Upon application of input voltage, the time delay relay is ready to accept a trigger. When the trigger is applied, the time delay (t) begins. At the end of the time delay (t), the output is energized and remains in that condition as long as both the trigger and control voltage remains. If the trigger is removed during the time delay (t), the output remains de-energized & the time delay (t) is reset.
FEATURES
- Cost effective design & compact 2" x 2" enclosure are ideal for industrial applications
- Microprocessor-based design for reliable performance & maximum flexibility
- Encapsulated for protection against harsh environments
- Normally Open output rated 1A continuous/10A inrush is perfect for high duty cycle/long life applications
- Universal input voltage of 24-240VAC or 12-125VDC
- Onboard & remote adjustable or fixed time delays from 0.01 seconds to 100 hours
- Pilot Duty Rating
