DESCRIPTION

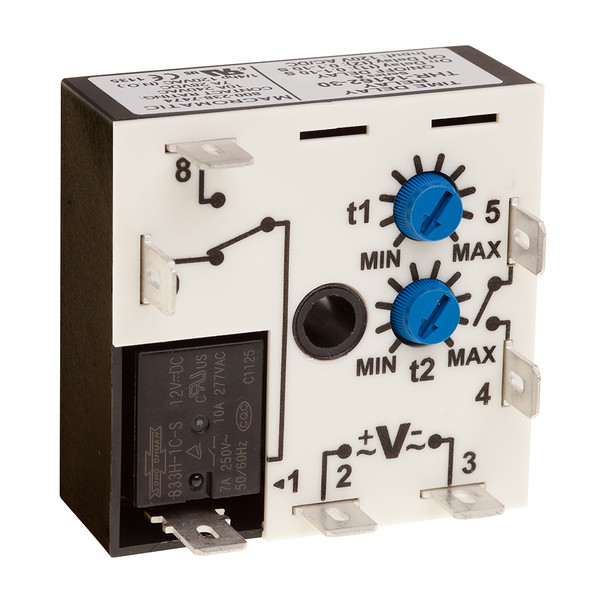

Timer, Triggered Delayed Interval, 24V AC/DC, 10 Amp SPDT, 1 - 100 hours, internal jumper to relay, jumpered trigger
Upon application of input voltage, the time delay (t) begins. At the end of the time delay (t), the output is energized. Input voltage must be removed to reset the time delay relay & de-energize the output. Upon application of input voltage, the time delay (t) begins. At the end of the time delay (t), the output is energized. Input voltage must be removed to reset the time delay relay & de-energize the output.
FEATURES
Cost effective design & compact 2″ x 2″ enclosure are ideal for industrial applications Microprocessor-based design for reliable performance & maximum flexibility Encapsulated for protection against harsh environments 10A SPDT relay output contacts can handle most pilot duty & fractional hp loads Input voltages of 12VDC, 24VAC/DC, 120VAC/DC & 240VAC Onboard & remote adjustable or fixed time delays from 0.05 seconds to 100 hours
