DESCRIPTION

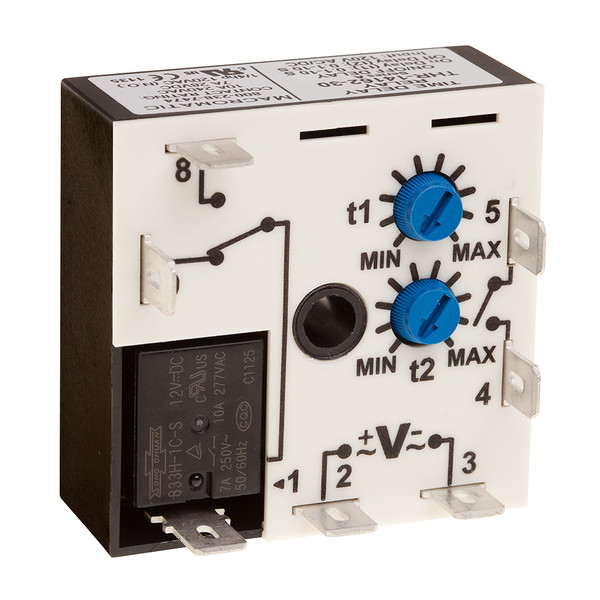

Timer, Triggered Delayed Interval, 120VAC, 10 Amp SPDT, 0.1 - 10 minutes, internal jumper to relay, jumpered trigger
Upon application of input voltage, the time delay (t) begins. At the end of the time delay (t), the output is energized. Input voltage must be removed to reset the time delay relay & de-energize the output. Upon application of input voltage, the time delay (t) begins. At the end of the time delay (t), the output is energized. Input voltage must be removed to reset the time delay relay & de-energize the output.
FEATURES
Voltage Tolerance: AC Operation: +10/-15% of nominal at 50/60 Hz; DC Operation: +10/-15% of nominal. Load (Burden): Maximum of 2 VA for all voltages Setting Accuracy: Maximum Setting (Adjustable): +5%, -0%; Minimum Setting (Adjustable): +0%, -50%; Fixed Time Delay: +2% or 50ms, whichever is greater Repeat Accuracy (Constant Voltage & Temperature): +0.1% or + 0.04 seconds, whichever is greater Reset Time: 100ms Output Contacts: 10A @ 240VAC / 7A @ 28VDC, 1/4hp @ 120VAC (N.O.) Life: Mechanical: 10,000,000 operations; Full Load: 100,000 operations Temperature: -28° to 65°C (-18° to 149°F)
