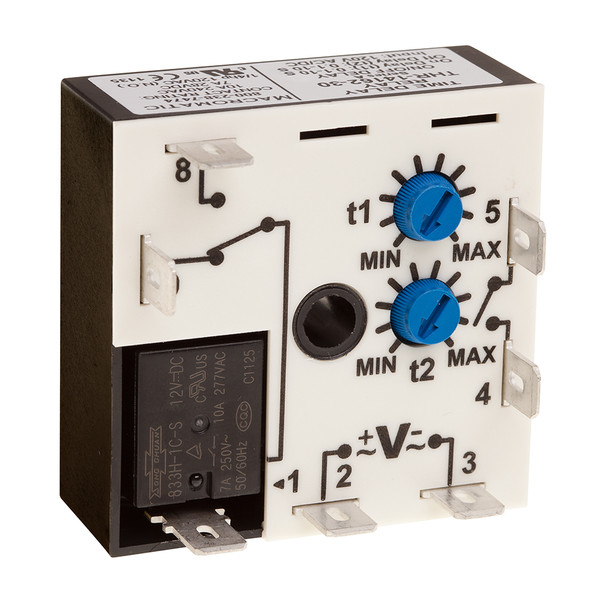

Description
Description of Function
Upon application of control voltage, the time delay relay is ready to accept a trigger. When the trigger is applied, the time delay (t1) begins. At the end of the time delay (t1), the output is energized. When the trigger is removed, the output contacts remain energized for the time delay (t2). At the end of the time delay (t2), the output is de-energized & the time delay relay is ready to accept another trigger. If the trigger is removed during time delay period (t1), the output will remain de-energized and time delay (t1) will reset. If the trigger is re-applied during time delay period (t2), the output will remain energized and the time delay (t2) will reset.
Features
- Cost effective design & compact 2″ x 2″ enclosure are ideal for volume OEM applications
- Microprocessor-based design for greater performance & maximum flexibility
- Encapsulated for protection against harsh environments
- 10A SPDT relay output contacts
- Relay common internally connected to pin 2 for easier wiring
- Onboard, adjustable, or fixed time delays from 0.05 seconds to 100 hours
Specifications
- Function: On Delay / Off Delay (Switch Trigger)
- CONTROL VOLTAGE: 240V AC
- Output: 10A SPDT
- TIMING RANGE: 1 – 100 Min
- TIMING RANGE 2: 1 – 100 Min
- MOUNT: Single Screw Mounting
- Setting Adjustment: Analog
- Options: Control Voltage connected at Relay Common
- REMOTE POTENTIOMETER: Consult Factory
- REMOTE POTENTIOMETER 2: Consult Factory
- Enclosure Style: Encapsulated
- Configuration / Contact Rating: SPDT 10A @ 240V AC / 7A @ 28V SPDT, 1/4 HP @ 120V AC (N.O.)
- Approvals: UL Recognized for the U.S. and Canada, CE
- AC Operation: +10/-15% of nominal at 50/60 Hz
- Load (Burden): 2 VA
- Setting Accuracy: Maximum Setting (Adjustable): +5%, -0%
- Setting Accuracy: Minimum Setting (Adjustable): +0%, -50%
- Fixed: ±2% or ±50ms, whichever is greater
- Repeat Accuracy: ±0.1% or ±0.04 seconds, whichever is greater
- Reset Time: 0.04 Seconds
- Start-up Time: 0.05 seconds
- Maintain Function Time: 0.01 seconds
- Temperature: Operating: -28° to 65° C (-18° to 149° F)
- Temperature: Storage: -40° to 85° C (-40° to 185° F)
- Life: Mechanical: 10,000,000 operations
- Life: Full Load: 100,000 operations
- Mounting: Surface with one #8 or #10 screw and a maximum tightening torque of 15 in-lbs
- Termination: 0.25″ male quick-connect terminals
