DESCRIPTION

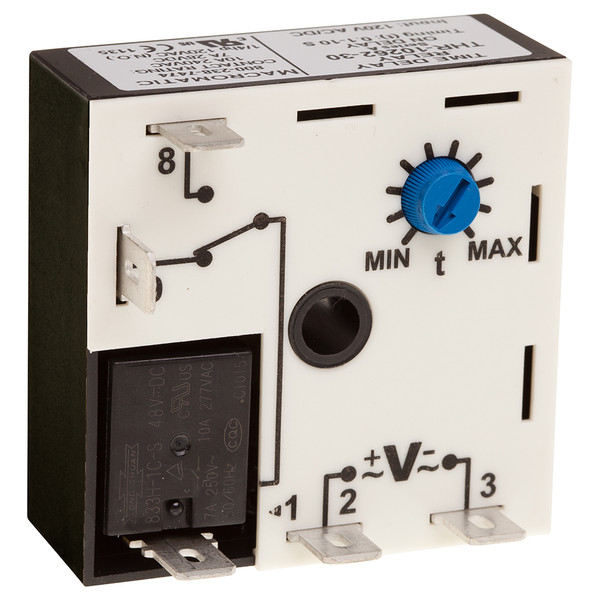

Timer, Triggered On Delay, 12VDC, 10 Amp SPDT, 1 - 100 hours
Upon application of input voltage, the time delay relay is ready to accept a trigger. When the trigger is applied, the time delay (t) begins. At the end of the time delay (t), the output is energized and remains in that condition as long as both the trigger and control voltage remains. If the trigger is removed during the time delay (t), the output remains de-energized & the time delay (t) is reset.
FEATURES
Time-based control with high amperage switching allows effective and economical operation of heavy loads such as pumps, compressors, and heaters. This cost-effective solution can eliminate the need for a separate contactor reducing cost and saving space. Choose from adjustable on-board potentiometers, remote potentiometers, or factory-set fixed time delays.
