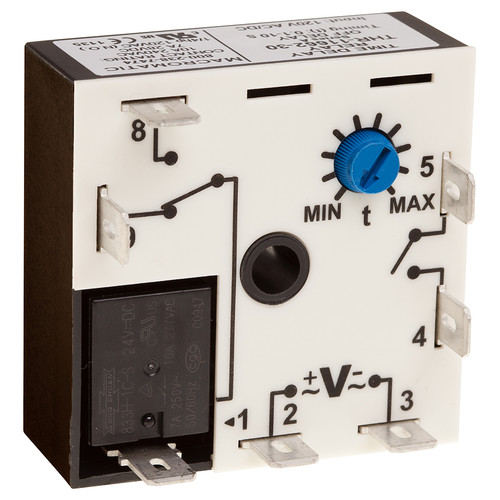

Description
Description of Function
Upon application of control voltage, the time delay (t) begins. At the end of the time delay (t), the output is energized and remains in that condition for the time delay (t). At the end of the time delay (t), the output is de-energized and the sequence repeats until the control voltage is removed.
Features
- Cost effective design & compact 2″ x 2″ enclosure are ideal for volume OEM applications
- Microprocessor-based design for greater performance & maximum flexibility
- Encapsulated for protection against harsh environments
- 10A SPDT relay output contacts
- Onboard, adjustable, or fixed time delays from 0.05 seconds to 100 hours
Specifications
- Function: Flasher (OFF 1st)
- CONTROL VOLTAGE: 12V DC
- Output: 10A SPDT
- TIMING RANGE: 1 – 100 Sec
- MOUNT: Single Screw Mounting
- Setting Adjustment: Analog
- REMOTE POTENTIOMETER: Consult Factory
- Enclosure Style: Encapsulated
- Configuration / Contact Rating: SPDT 10A @ 240V AC / 7A @ 28V SPDT, 1/4 HP @ 120V AC (N.O.)
- Approvals: UL Recognized for the U.S. and Canada, CE
- DC Operation: +10/-15% of nominal
- Load (Burden): 2 VA
- Setting Accuracy: Maximum Setting (Adjustable): +5%, -0%
- Setting Accuracy: Minimum Setting (Adjustable): +0%, -50%
- Fixed: ±2% or ±50ms, whichever is greater
- Repeat Accuracy: ±0.1% or ±0.04 seconds, whichever is greater
- Reset Time: 0.1 Seconds
- Start-up Time: 0.05 seconds
- Maintain Function Time: 0.01 seconds
- Temperature: Operating: -28° to 65° C (-18° to 149° F)
- Temperature: Storage: -40° to 85° C (-40° to 185° F)
- Life: Mechanical: 10,000,000 operations
- Life: Full Load: 100,000 operations
- Mounting: Surface with one #8 or #10 screw and a maximum tightening torque of 15 in-lbs
- Termination: 0.25″ male quick-connect terminals
