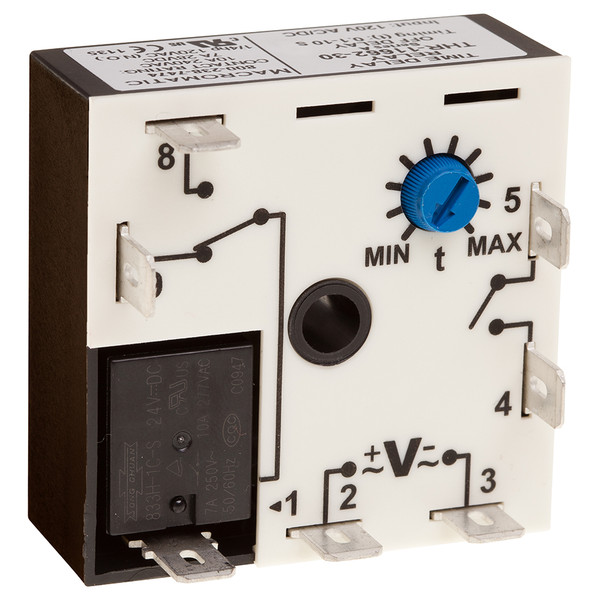

Description
Description of Function
Upon application of control voltage, output is energized and the time delay (t) begins. At the end of the time delay (t), the output is de-energized. Control voltage must be removed to reset the time delay relay.
Features
- Cost effective design & compact 2″ x 2″ enclosure are ideal for volume OEM applications
- Microprocessor-based design for greater performance & maximum flexibility
- Encapsulated for protection against harsh environments
- 10A SPDT relay output contacts
- Relay common internally connected to pin 2 for easier wiring
- Onboard, adjustable, or fixed time delays from 0.05 seconds to 100 hours
Specifications
- Function: Interval On
- CONTROL VOLTAGE: 120V AC/DC
- Output: 10A SPDT
- TIMING RANGE: 1 – 100 Min
- MOUNT: Single Screw Mounting
- Setting Adjustment: Analog
- Options: Control Voltage connected at Relay Common
- REMOTE POTENTIOMETER: Consult Factory
- Enclosure Style: Encapsulated
- Configuration / Contact Rating: SPDT 10A @ 240V AC / 7A @ 28V SPDT, 1/4 HP @ 120V AC (N.O.)
- Approvals: UL Recognized for the U.S. and Canada, CE
- AC Operation: +10/-15% of nominal at 50/60 Hz
- DC Operation: +10/-15% of nominal
- Load (Burden): 2 VA
- Setting Accuracy: Maximum Setting (Adjustable): +5%, -0%
- Setting Accuracy: Minimum Setting (Adjustable): +0%, -50%
- Fixed: ±2% or ±50ms, whichever is greater
- Repeat Accuracy: ±0.1% or ±0.04 seconds, whichever is greater
- Reset Time: 0.1 Seconds
- Start-up Time: 0.05 seconds
- Maintain Function Time: 0.01 seconds
- Temperature: Operating: -28° to 65° C (-18° to 149° F)
- Temperature: Storage: -40° to 85° C (-40° to 185° F)
- Life: Mechanical: 10,000,000 operations
- Life: Full Load: 100,000 operations
- Mounting: Surface with one #8 or #10 screw and a maximum tightening torque of 15 in-lbs
- Termination: 0.25″ male quick-connect terminals
