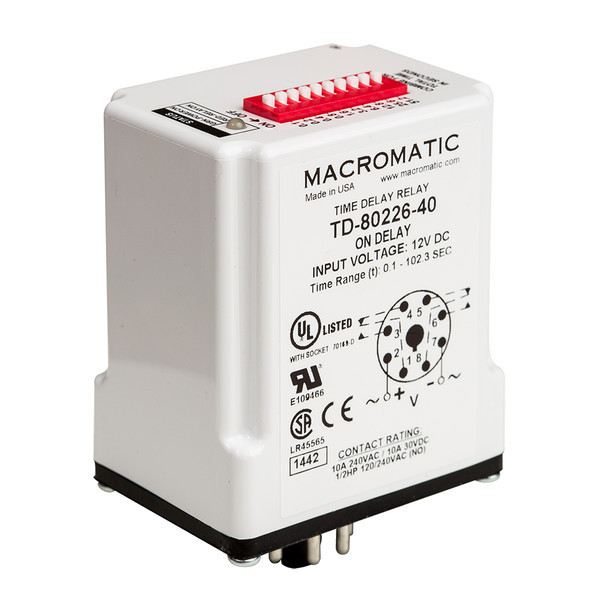

Description
Description of Function
Upon application of control voltage, the time delay relay is ready to accept a trigger. When the trigger is applied, the output is energized. Upon removal of the trigger, the time delay (t) begins. At the end of the time delay (t), the output is de-energized. Any application of the trigger during the time delay will reset the time delay (t) and the output remains energized.
Features
- DIP-Switches for accurate digital set of time delay
- Uses Industry-standard 11 pin sockets
- 10A DPDT output contacts
- LED indicates relay status
- Pilot Duty Rating
Specifications
- Function: Off Delay
- CONTROL VOLTAGE: 24V AC/DC
- Output: 10A DPDT
- TIMING RANGE: 10 – 10,230 Min
- MOUNT: 11-Pin Socket
- Setting Adjustment: Digital
- Enclosure Style: Plug-in
- Configuration / Contact Rating: DPDT 10A @ 240V AC / 10A @ 30V DC, 1/2HP @ 120/240V AC (N.O.), 1/3HP @ 120/240V AC (N.C.), B300 & R300
- Approvals: UL Recognized for the U.S. and Canada, CE
- AC Operation: +10/-15% of nominal at 50/60 Hz
- DC Operation: +10/-15% of nominal
- Load (Burden): 2 VA
- Constant Voltage & Temperature: ±0.1% of set time or ±50ms, whichever is greater
- Variable Voltage & Temperature: ±1% of set time or ±50ms, whichever is greater
- Constant Voltage & Temperature: ±0.1% of set time or ±0.02 seconds, whichever is greater
- Variable Voltage & Temperature: ±1% of set time or ±0.02 seconds, whichever is greater
- Reset Time: 0.04 Seconds
- Start-up Time: 0.05 Seconds
- Maintain Function Time: 0.01 Seconds
- Insulation Voltage: 2kV
- Operation: -28° to 65° C (-18° to 149° F)
- Storage: -40° to 85° C (-40° to 185° F)
- Life: Mechanical: 10,000,000 operations
- Life: Full Load: 100,000 operations
