DESCRIPTION

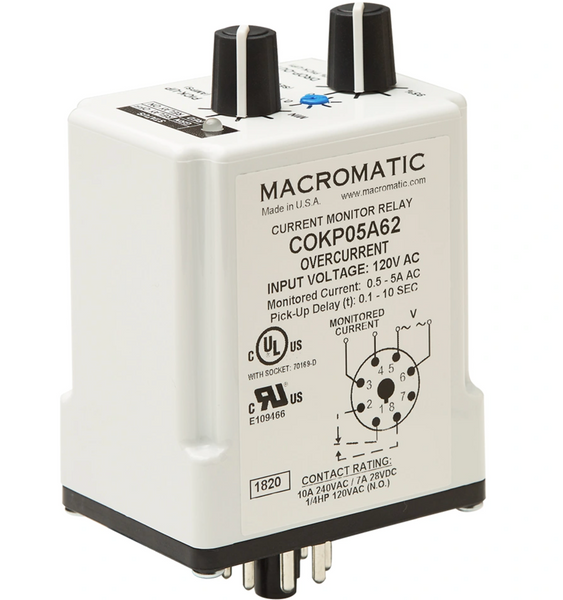

Current Monitor Relay; Plug-in; 0.5-5A; 120VAC; 10A SPDT; 0.1-10 Sec. pick-up & 100ms drop-out delay
The pick-up current setting is user-adjustable within the Monitored Current Range below. An external current transformer can be used to extend the range beyond 10 amperes. The drop-out setting is adjustable from 50-95% of the selected pick-up setting. The relay will energize when the monitored AC current is above the pick-up setting for a period longer than the adjustable time delay (t) of 0.1-10 seconds. This delay prevents nuisance tripping caused by inrush currents. It will de-energize when the monitored AC current is below the drop-out setting.
FEATURES
- Monitors AC currents for overcurrent conditions
- Three separate current monitoring ranges covering 0.1 - 10 amperes
- External CT can be used to extend ranges
- Adjustable Pick-up and Drop-out Settings
- Adjustable time delay of 0.1-10 seconds on pick-up
- LED indicates output relay status
