Description
DESCRIPTION

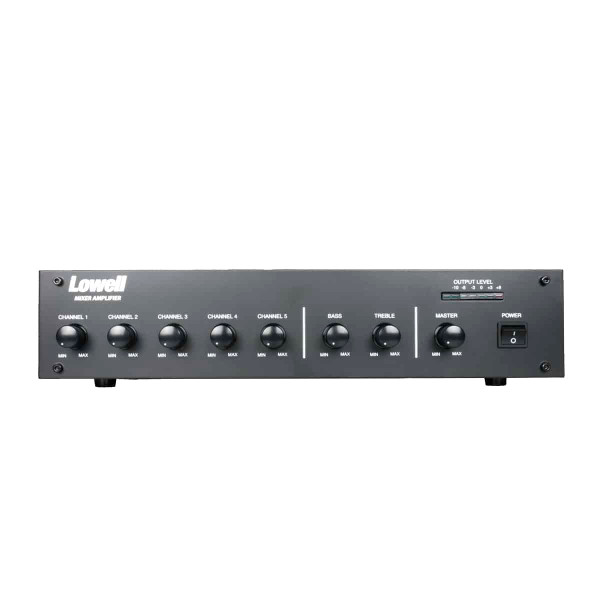

Mixer with 250W amplifier is powered via switchable 115 or 230 VAC @ 50/60Hz or 24VDC. Features five channel volume controls, treble and bass controls, master volume control, main power switch, and LED display bank for output level. Includes rackmount brackets.
FEATURES
- Mixer with 250W amplifier
- Powered via switchable 115 or 230 VAC @ 50/60Hz or 24VDC
- Features five channel volume controls
- Treble and bass controls
- Master volume control
- Main power switch
- LED display bank for output level
- Includes rackmount brackets
- Five input channels, switchable from XLR mic connector to AUX input dual combining RCA-phono connectors.
- Includes 4 ohm, 8 ohm, 25V, and 70V speaker outputs at a screw terminal strip.
- AUX-6 input channel with dual combining RCA phono connectors and rear level control.
- Main AC input protected by circuit breaker on rear panel.
- Un-switched (always on) AC outlet in rear is protected by separate circuit breaker.
- Mic-1 mutes channels 3–6.
- Separate telephone input with level control in rear mutes all other inputs.
- Dual RCA/phono parallel tape-out connectors and dual RCA-phono parallel PRE-OUT (preamp out) connectors in rear.
- Chassis-ground termination screw in rear
- 19 in. E.I.A. rackmount chassis (17 in. x 13.5 in. x 3.5 in.)
