DESCRIPTION

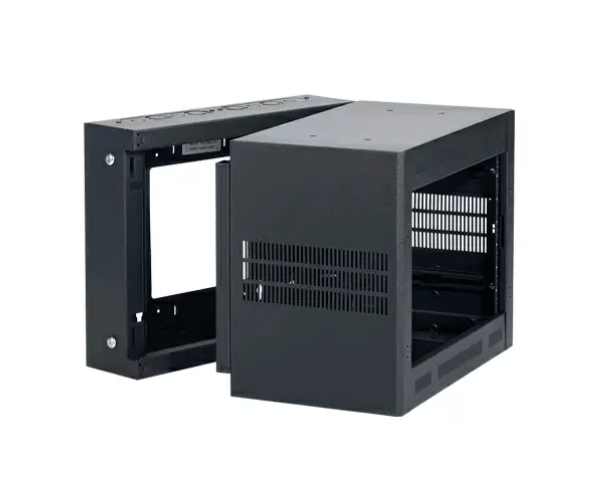

Heavy-duty sectional wall rack features a front mounting section that swings open from its backbox, allowing easy access to cables and equipment. The welded 16-gauge certified U.S. steel rack features fully gusseted corners and a triple formed (side-to-bottom, side-to-top) wrap design that mounts to the backbox with positive-locking, spring-loaded L-pins. A roller closure keeps the front closed without mandatory locking. U.S. steel with black powder epoxy finish. Optional front door (order separately).
FEATURES
- Backbox: 5.80 in. deep with keyhole mounting slots on 16 in. centers, center opening to mount over electrical pull boxes, ground stud, embossed dimples on back plane for installation of board-mounted accessories, laser-cut knockout panels on top/bottom, and two keyed side locks.
- Front Mounting Section: Fully gusseted corners, triple formed wrap design mounts to backbox from inside with two heavy duty spring-loaded L-pins (self seating, positive locking).
- Welded sides with vents
- Beveled front corners
- Knockouts for wireless antennas
- One pair adjustable mounting rails tapped 10-32, printed RU scale
- Integral top/bottom rails on E.I.A. spacing for mounting or lacing
- Black wrinkle powder epoxy finish
- Load capacity 125 lbs.
- Pilot Point screws with captive washers
- Grounding stud
