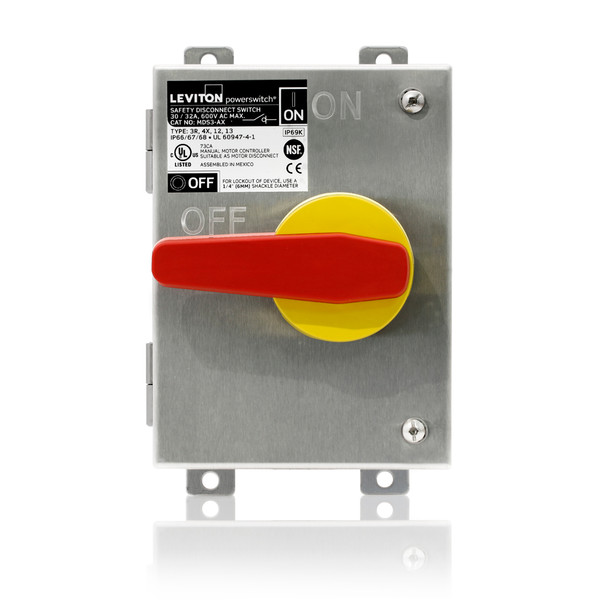

Leviton MDS3-AX Powerswitch Safety Disconnect Switch

Leviton MDS3-AX Powerswitch Safety Disconnect Switch

$368.76
SKU:
MDS3-AX
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Manufacturer Information

Leviton orders require a $400 combined minimum. Orders under this amount can be processed with a $25 fee. This fee will be incorporated into the shipping cost. Please contact us about possible orders under this amount.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Powerswitch Safety Disconnect Switch

30 Amp Non-Fused PowerSwitch Stainless Steel Disconnect Switch, 600 Volt, Type 304 Non-Magnetic Stainless Steel Enclosure

UPC Code: 078477805473
Country Of Origin: Mexico

Electrical Specifications
Amperage: 30/32 A
Current Interrupting: Certified for full-rated current and voltage
Dielectric Voltage: 1000 V plus twice rated voltage for 1 minute
Endurance: 6,000 cycles inductive motor type load
Short Circuit Current Rating: 10KA
Voltage: 600 VAC

Environmental Specifications
Ingress Protection: NEMA/UL 50E Type 3R, 4X, 12, 13; IP66, IP67, IP68; IP69K (per ISO 20653)
Operating Temperature: -40°C to 75°C
UV Resistance: Exposed materials are UV stabilized

Material Specifications
Enclosure Material: 16 Gauge Type 304 Stainless Steel
Gasket: Polyurethane Formed-In-Place-Foam Gasket (FIPFG), UL 50E Approved
Handle Material: Base: PBT Overmold: TPE

Mechanical Specifications
Product ID: Part of internal and external label
Terminal Accom.: 14-8 AWG
Terminal ID: In accordance with UL and international conventions

Standards and Certifications
CE: CE Marked - Low Voltage Directive (LVD) 2014/35/EU
IEC: 60529
NEMA: 250
NOM: NOM-ANCE
cULus: Listed to UL 60947-4-1 (supersedes UL 508) and CSA-C22.2 no. 60947-4-1

Warranty
Warranty: 3-Year Limited
