Description

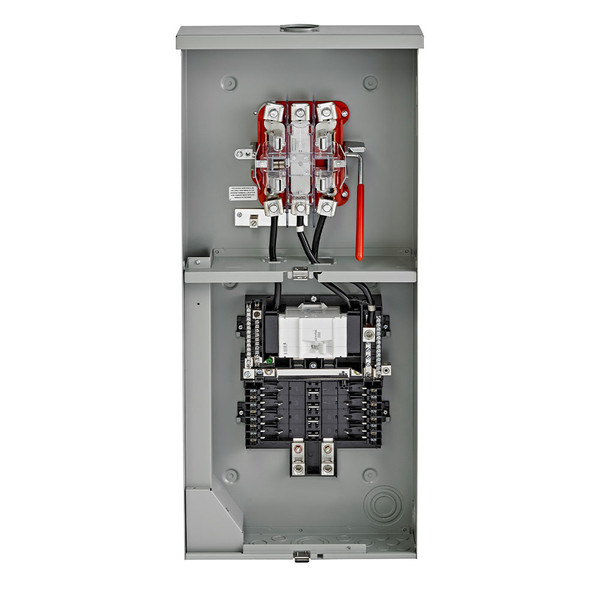

200A Outdoor Meter Main Combo, 8 Spaces, Ringless with Lever Bypass, 5th Jaw Installed
Outdoor Meter Main Combo with 200A Main Circuit Breaker Factory Installed, 8 Spaces, NEMA 3R Rated. Includes Enclosure, Ringless Door, Feed-Thru Lugs, and Lever Bypass with 5th Jaw Installed
- EASY – Leviton's revolutionary design allows the entire Load Center to be wired at rough-in without any circuit breakers present
- SUPERIOR CONDUCTIVITY – All Leviton Load Centers come standard equipped with tin plated copper bussing
- ORGANIZED – Notches stamped into the enclosure for cable ties promote secure and neat wiring
- UTILITY REQUIREMENT – Meter Equipment Group (MEG) Approved
*For applications up to 60A when using copper wire; or 50A when using aluminum wire
*Designed for Leviton Circuit Breakers
UPC Code: 078477822548
Country Of Origin: Mexico
Country Of Origin: Mexico
Product Features
Color: GrayWarranty: 10-Year Limited
Electrical Specifications
Amperage: 200 AShort Circuit Current Rating: 22 KA
Spaces / Circuits: 8 / 8
Type of Load Center: Meter Main
Voltage: 120/240 VAC
Mechanical Specifications
Busbar Material: Copper, Bright Tin-PlatedDimensions: 36" H x 16.6" W x 5.2" D
Enclosure Material: Galvanized Steel, Gray Baked Enamel
Ground Connection: 4 AWG - 2/0 AWG Cu/Al
Supply Connections: 6 AWG – 350 MCM
Weight: 56.8 lbs
Operating Temperature: 0°C to 40°C
UL 50E: Yes
UL 67: Yes
UL 869A: Yes
Supply Connections: 6 AWG – 350 MCM
Weight: 56.8 lbs
Environmental Specifications
NEMA Enclosure Type: NEMA 3R OutdoorOperating Temperature: 0°C to 40°C
Standards & Certifications
UL 50: YesUL 50E: Yes
UL 67: Yes
UL 869A: Yes
