Description

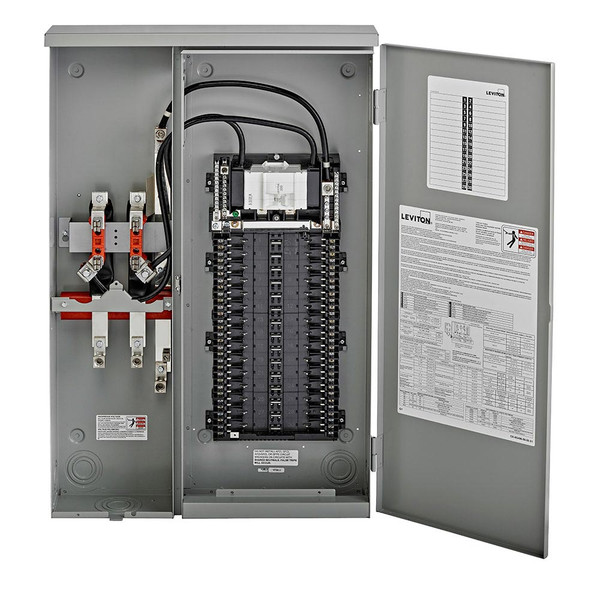

Outdoor Load Center Meter Combo Ring Type, NEMA 3R with Main Breaker, 200A 30 Spaces, 22KA Interrupt Rating, Enclosure and Door. EUSERC Approved.
Leviton Meter-Load Center Combination, All-in-One Panels provide a meter socket, main breaker, and your choice of 30 or 42 branch breaker spaces in one easy to install unit. Hydraulic-Magnetic Trip Technology allows circuit breakers to operate as intended over a wide range of temperature extremes, -40°C to 85°C, without re-rating. All hot and neutral wires terminate at custom lugs in the panel, not at the circuit breaker*, so the entire panel can be wired at rough-in without circuit breakers installed. Circuit breakers are easily plugged-on at final installation.
*For applications up to 60A when using copper wire; or 50A when using aluminum wire
*Designed for Leviton Circuit Breakers
- UPC Code: 078477822357
- Country Of Origin: Mexico
Mechanical Specifications
- Busbar Material: Copper, Bright Tin-Plated
- Dimensions: 37.25" H x 25" W x 5.2" D
- Enclosure Material: Galvanized Steel, Gray Baked Enamel
- Ground Connection: 4 AWG - 2/0 AWG Cu/Al
- Supply Connections: 6 AWG – 350 MCM
- Weight: 88 lbs
Electrical Specifications
- Amperage: 200 A
- Short Circuit Current Rating: 22 KA
- Spaces / Circuits: 30 / 30
- Type of Load Center: Meter Load Center Combination (All-in-One)
- Voltage: 120/240 VAC
Standards & Certifications
- UL 50: Yes
- UL 50E: Yes
- UL 67: Yes
- UL 869A: Yes
Product Features
- Color: Gray
- Warranty: 10-Year Limited
Environmental Specifications
- NEMA Enclosure Type: NEMA 3R Outdoor
- Operating Temperature: -40°C to 85°C
