Description

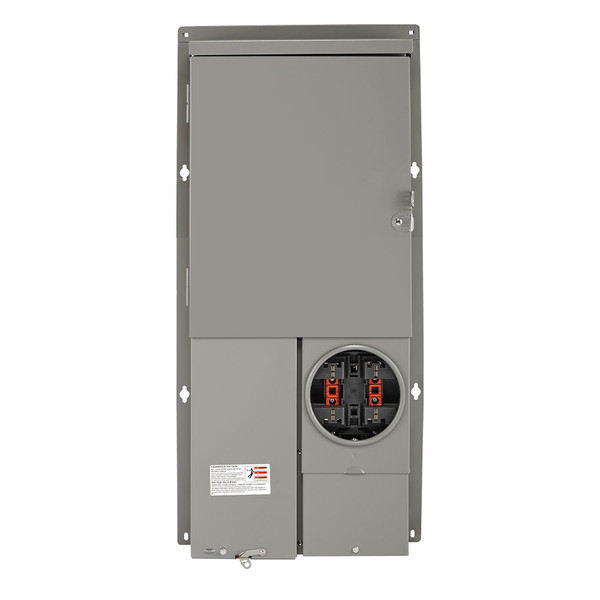

12 Space Outdoor Meter Main Combo with 125A Main Circuit Breaker, Solar-Ready
Outdoor Meter Main Combo with 125A Main Circuit Breaker Factory Installed, 12 Spaces, NEMA 3R Rated. Solar-Ready, Over/Under Construction, Semi-Flush Mount. Includes Enclosure and Ring-Type Door
- EASY – Leviton's revolutionary design allows the entire Load Center to be wired at rough-in without any circuit breakers present
- SUPERIOR CONDUCTIVITY – All Leviton Load Centers come standard equipped with tin plated copper bussing
- SOLAR READY – California Title-24 Compliant
- UTILITY REQUIREMENT – EUSERC Approved
*Designed for Leviton Circuit Breakers
UPC Code: 078477111741
Country Of Origin: China
Short Circuit Current Rating: 22KA
Spaces / Circuits: 12 Spaces
Type: Outdoor
Voltage: 120/240 VAC
Busbar Rating: 225A
Color: Gray
Dimensions: 7.3 L x 16.8 W x 34.9 H
Ground Connection: - 4 AWG - 2/0 AWG Cu/Al
Country Of Origin: China
RoHS Compliant: Yes - Click Here
Electrical Specifications
Amperage: 125 AShort Circuit Current Rating: 22KA
Spaces / Circuits: 12 Spaces
Type: Outdoor
Voltage: 120/240 VAC
Mechanical Specifications
Busbar Material: Copper, Bright Tin-PlatedBusbar Rating: 225A
Color: Gray
Dimensions: 7.3 L x 16.8 W x 34.9 H
Ground Connection: - 4 AWG - 2/0 AWG Cu/Al
Material: Galvanized Steel
Supply Connections: 3 AWG – 300 MCM
Weight: 55 lbs.
Operating Temperature: -40°C to 85°C
UL 67: Yes
UL 869A: Yes
Supply Connections: 3 AWG – 300 MCM
Weight: 55 lbs.
Environmental Specifications
NEMA Enclosure Type: NEMA 3ROperating Temperature: -40°C to 85°C
Standards & Certifications
UL 50E: YesUL 67: Yes
UL 869A: Yes
