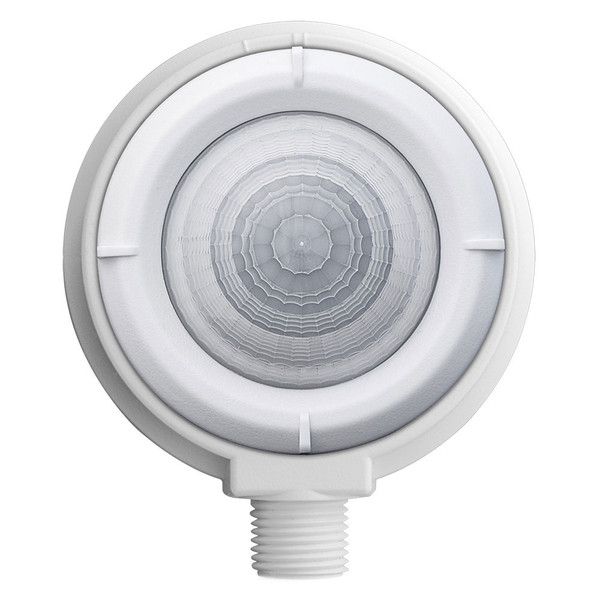

Leviton HBE11-IUB Occupancy Sensor, 0-10V Dimming, Fixture Mount, PIR, Indoor/Outdoor, Wet Location, 120/277/347VAC, IP65 rated, white

Leviton HBE11-IUB Occupancy Sensor, 0-10V Dimming, Fixture Mount, PIR, Indoor/Outdoor, Wet Location, 120/277/347VAC, IP65 rated, white

$106.37
SKU:
HBE11-IUB
Shipping:
Calculated at Checkout
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Manufacturer Information

Leviton orders require a $400 combined minimum. Orders under this amount can be processed with a $25 fee. This fee will be incorporated into the shipping cost. Please contact us about possible orders under this amount.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Occupancy Sensor, 0-10V Dimming, Fixture Mount, PIR, Indoor/Outdoor, Wet Location, 120/277/347VAC, IP65 rated, white

Occupancy Sensor, Dimming PIR, Fixture Mount, Lighting Control, 120/277/347VAC, IP65 Rating for Low-Temp, Water Tight, Indoor/Outdoor, Adjustable time delay between 1m-15m, Downward and upward facing daylight sensor (selectable via dipswitch), Dimming Presets Unoccupied: 70%, 60%, 50% & 20%, UL and cUL Listed. Lens Sold Separately. Color: White.

The 0-10V Dimming Fixture Mount PIR Indoor/Outdoor Wet Location Occupancy Sensor is specifically designed to be mounted directly to an industrial fluorescent fixture or electrical junction box for control of 0-10V dimmable fixtures. The sensor is IP65 rated making it ideal for wash down applications in indoor and outdoor locations.

UPC Code: 078477705858
Country Of Origin: China
  • Controls 0-10V dimmable ballasts for daylight harvesting applications
  • Interchangeable high/low area detection lenses in 360° view or aisle patterns*
  • Full OFF timer delay
  • 8-second test mode with 1, 5, 10 and 15 minute time outs
  • Unoccupied dimming presets: 70%, 60%, 50%, 20%
  • IP65 rated
  • Meets energy code requirements for ASHRAE 90.1, California Title 24 and IECC, UL and cUL listed

 *Lenses must be ordered separately

Product Features
Application: Indoor/Outdoor, Wet Location, Supermarket meat departments, Food processing plants, Parking garages, Outdoor lighting fixtures
Commissioning: Manual
Feature: 0-10 volt Dimming and Wet Location Occupancy Sensor
Mounting: Fixture Mount
Product Line: HBE11
Sensor Technology: Passive Infrared (PIR)
Sensor Type: Occupancy
Time Delay: 8-second test mode with 1, 5, 10 and 15 minute time outs

Mechanical Specifications
Color: White
Construction: High-impact, injection-molded plastic
Grade: Commercial
IP Rating: IP65
Mounting Type: Fixture Mount
Sensor Mounting Configuration: External
Size: Height 1.5" (38.10mm) x Width 4" (101.60mm)
Title 24 Compliant: Yes

Performance Specifications
Coverage (Sq.Ft.): 8-45
Operating Range: Downward facing sensor: 1-50FC (10.76-538.19 LUX) Upward facing sensor: 5-500FC (53.81-5381.96 LUX)
Pattern: 360°

Electrical Specifications
Dimming Technology: 0-10VDC
Frequency: 50/60Hz
Load Rating: 120VAC: 0-800W Electronic Ballast/LED Driver or 0-600W, Tungsten 60Hz, 277VAC: 0-1 200W Electronic Ballast/LED Driver, 347VAC: 0-1 500W Electronic Ballast/LED Driver, 1/4 HP motor load @ 120VAC and 277VAC, 1/6 HP motor load @ 347VAC
Neutral Wire Connection: Required
Operating Temperature: -40°C to 65°C
Voltage: 120-347 VAC

Standards and Certifications
Listings: IECC, UL STD 508, UL STD 244A, IP65 listed
Testing and Code Compliance: Can be used to comply with ASHRAE 90.1, Title 24, Part 6 occupancy/vacancy sensing requirements

Environmental Specifications
Environment: Indoor/Outdoor
Operating Temperature: -40°C to 65°C

Type
Product Type: Occupancy Sensor

Warranty
Warranty: 5-Year Limited
