Product Overview

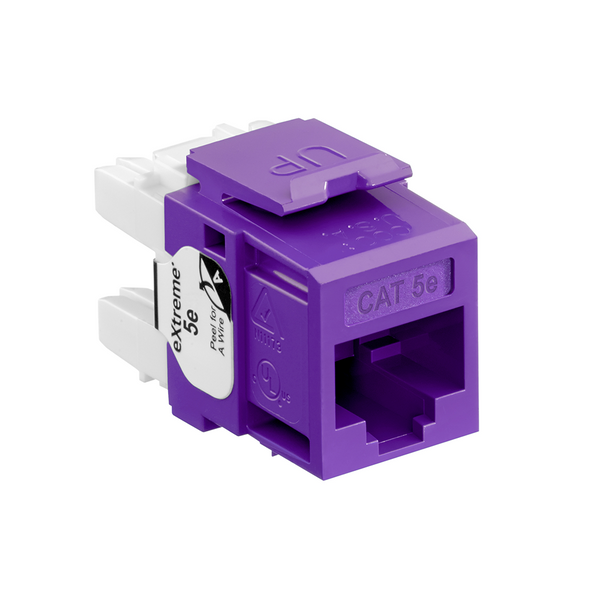

eXtreme Cat 5e QuickPort Jack, Purple
The eXtreme Category 5e Component-Rated UTP Jack is designed to be used with all Leviton QuickPort compatible products. The jack includes patented Retention Force Technology™ which promotes consistent performance over the life of the system. It includes unique pair separation towers allowing for quicker and easier terminations. The jack is in a 180-degree configuration with the punch field in the back, allowing for rear termination.
- Terminates 26- and 22 AWG solid conductors
- Capable of multiple re-terminations
- Gas-tight IDC connectors prevent corrosion
- Dual-layer T568B/T568A wiring label simplifies punchdown
- Patented Retention Force Technology protects tines from damage and increases system longevity
- Pair Separation Tower design facilitates separation of conductors and minimizes untwisting
- 180-degree configuration allows for rear termination
- Available in 13 ANSI/TIA-606-C compatible colors for color coding or organization
- Available individually, in bulk packages of 25, and in bulk packages of 150 with a JackRapid™ Punchdown Tool
- Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor (100 watts) continuously
- ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) applications
UPC Code: 078477177112
Country Of Origin: United States
Brand: eXtreme
Cable Type: 8-Conductor UTP Copper Cat 5, 5e and 6
Category Rating: Cat 5e
Color: Purple
Connector Feature: Channel/Component Rated
Contact Base Material: Phosphor Bronze
Contact Sub-Surface Material: 100 microinches thick Nickel-Plated
Contact Surface Material: 50 microinches thick Gold-Plated
Flammability: Rated V-0 per UL 94
Module Style: Connector
Module Type: Category 5e
Packaging: Single Pack 1/bag
Position / Conductor: 8P8C
Shielding: UTP
Standards and Certifications: TIA/EIA cULus Listed
Termination Type: 110 Punchdown
Warranty: 1 Year Limited
Body Material: High-Impact Fire-Retardant Plastic
Country Of Origin: United States
RoHS Compliant:Yes - Click Here
Product Features
Body Color: PurpleBrand: eXtreme
Cable Type: 8-Conductor UTP Copper Cat 5, 5e and 6
Category Rating: Cat 5e
Color: Purple
Connector Feature: Channel/Component Rated
Contact Base Material: Phosphor Bronze
Contact Sub-Surface Material: 100 microinches thick Nickel-Plated
Contact Surface Material: 50 microinches thick Gold-Plated
Flammability: Rated V-0 per UL 94
Module Style: Connector
Module Type: Category 5e
Packaging: Single Pack 1/bag
Position / Conductor: 8P8C
Shielding: UTP
Standards and Certifications: TIA/EIA cULus Listed
Termination Type: 110 Punchdown
Warranty: 1 Year Limited
Material Specifications
Body Color: PurpleBody Material: High-Impact Fire-Retardant Plastic
Contact Base Material: Phosphor Bronze
Contact Sub-Surface Material: 100 microinches thick Nickel-Plated
Contact Surface Material: 50 microinches thick Gold-Plated
Connector Feature: Channel/Component Rated
Position / Conductor: 8P8C
Product ID: Permanently laser-engraved
Style Name: eXtreme
Termination Type: 110 Punchdown
Wiring Standard: T568A T568B
CSA: Certified
FCC: Part 68 Compliant
ISO/IEC: 11801
NEC: Article 800 Compliant
TIA/EIA: TIA-568-B
UL: cULus Listed
Contact Sub-Surface Material: 100 microinches thick Nickel-Plated
Contact Surface Material: 50 microinches thick Gold-Plated
Mechanical Specifications
Cable Type: 8-Conductor UTP Copper Cat 5, 5e and 6Connector Feature: Channel/Component Rated
Position / Conductor: 8P8C
Product ID: Permanently laser-engraved
Style Name: eXtreme
Termination Type: 110 Punchdown
Wiring Standard: T568A T568B
Performance Specifications
Module Type: Category 5eStandards and Certifications
ACA: CompliantCSA: Certified
FCC: Part 68 Compliant
ISO/IEC: 11801
NEC: Article 800 Compliant
TIA/EIA: TIA-568-B
UL: cULus Listed
Other Information
Leviton orders require a $400 combined minimum. Orders under this amount can be processed with a $25 fee. This fee will be incorporated into the shipping cost. Please contact us about possible orders under this amount.
