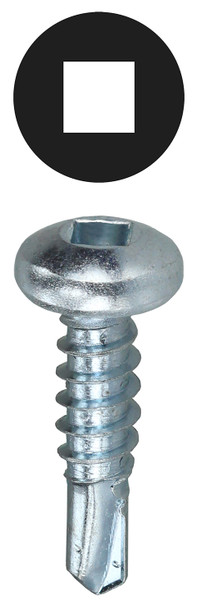

L.H. Dottie TEKDDT834 #8 x 3/4'' Square Drive Pan Head Self Drilling Screw (Tuff Pack)

$0.15
SKU:
TEKDDT834
Shipping:
Calculated at Checkout
Product Type:
Self Drilling Screws

Product Overview

#8 x 3/4'' Square Drive Pan Head Self Drilling Screw (Tuff Pack)

Self-Drilling Screws are manufactured from cold-heading steel and feature a #2 drill point. The unique tip design allows them to drill, tap, and fasten metal to metal objects in one operation, without the need to pre-drill. This creates the optimal drill performance and thread forming experience. The most common applications are used on metal to metal, but they can also be used in a wide variety of other applications. IFI-113 and ASTM C954 cover the material and performance requirements for steel self-drilling screws.

Physical Characteristics

Type
Self Drilling Screw
Drive Type
Square
Head Type
Pan
Thread Type
BSD
Point Type
#2
Size
#8 x 3/4''
Dia./Thread Size
#8
Head Diameter
0.322'' - 0.306''
Length (in)
3/4''
Head Width
0.322'' - 0.306''
Head Height
0.12'' - 0.11''
Thread Pitch/Thread Per Inch
18
Bit Size
#2
Material
Carbon Steel
Finish
Zinc Plated

Packaging Details

Standard Qty
500
Master Qty
0
Price Per
100
Package Length
3.54
Package Width
3.70
Package Height
3.39
Package Weight
2.10
Net Weight
0.00

Performance Data

Rockwell Hardness
HRC 32 - 40
Special Features
Drill, Taps and Fastens in One Operation
Applications
Metal to Metal

Other Information

Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
