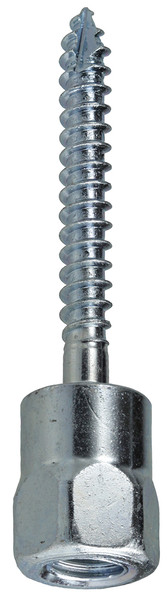

L.H. Dottie SSW12B 1/2''-13 Wood Bottom Mount Rod Hanger

$5.12
SKU:
SSW12B
Shipping:
Calculated at Checkout
interval quantity:
100
L.H. Dottie SSW12B 1/2''-13 Wood Bottom Mount Rod Hanger

Product Overview

1/2''-13 Wood Bottom Mount Rod Hanger

Wood Rod Hangers are carbon steel fasteners used in overhead applications where threaded rod is intended to be suspended. They are manufactured with a type-17 tip to provide easy installation in wood frame columns and beams. Suitable applications for use are electrical conduit and cable-tray applications, pipe hanging, fire protection, and suspension of HVAC equipment. For proper installation instructions and weight loads, reference the technical data sheet.
Add to submittal

Specifications

Physical Characteristics

Anchor Type
Rod Hanger
Point Style
Type 17
Thread Type
AB
Screw Size
5/16'' x 2-1/2''
Rod Size
1/2''
Head Diameter
5/8''
Shank Length
2-1/2''
Thread Pitch/Thread Per Inch
3/8''-16
Material
Carbon Steel
Finish
Zinc Plated
Mount Style
Bottom

Packaging Details

Standard Qty
100
Master Qty
300
Price Per
100
Package Length
8.50
Package Width
5.80
Package Height
3.90
Net Weight
0.08
Package Weight
8.45

Performance Data

Pre-Drill Size
1/8''
Applications
Wood Frame Columns and Beams
Special Features
No Pre-Drill Required, Type 17 Gimlet Point For Quick Installation, Single Piece Design

Certifications

RoHS Compliant
Yes

Other Information

Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
