Product Overview

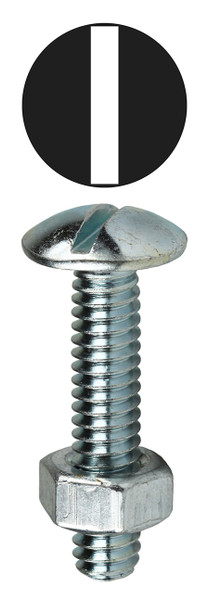

3/16''-24 x 1-1/4'' Truss Head Stove Bolt w/ Hex Nut
Stove Bolts are screws with truss slotted heads that come packed with hex nuts. They have coarse threads and are used for joining non-precision metal, wood, and plastic assemblies such as duct work, and automated equipment.
Specifications
Physical Characteristics
Type
Stove Bolt
Drive Type
Slotted
Head Type
Truss
Thread Style
UNC
Size
3/16''-24 x 1-1/4''
Dia./Thread Size
3/16''-24
Head Diameter
0.448'' - 0.425''
Length (in)
1-1/4''
Head Height
0.118'' - 0.103''
Thread Pitch/Thread Per Inch
24
Driver Size
#2
Material
Carbon Steel
Finish
Zinc Plated
Packaging Details
Standard Qty
100
Sleeve Qty
0
Master Qty
0
Price Per
100
Package Length
2.18
Package Width
2.92
Package Height
4.31
Package Weight
1.25
Net Weight
0.01
Performance Data
Rockwell Hardness
HRB 100 - 70
Special Features
Low Profile Head for Clearance, Zinc Plated
Applications
General Purpose
Certifications
RoHS Compliant
Yes
Meets/Exceeds
ASME B18.6.3
Resources & Downloads
Other Information
Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
