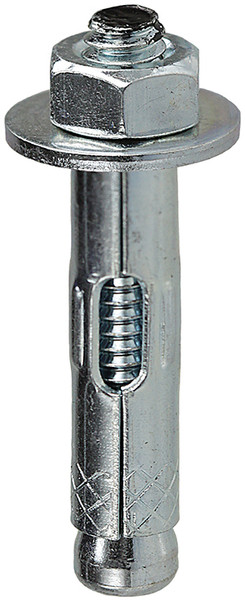

L.H. Dottie SA12400 1/2'' x 4'' Sleeve Anchor w/ Hex Nut

$90.42
SKU:
SA12400
Shipping:
Calculated at Checkout
Product Type:
Anchors
Standard Package Quantity:
25

Product Overview

1/2'' x 4'' Sleeve Anchor w/ Hex Nut

Sleeve Anchors are a preassembled expanding anchor manufactured for use in concrete, cement, block, thin wall/solid concrete, brick or stone. Due to it's unique design, it can also be used in soft concretes because the compression load can be distributed over a longer length. It comes in both acorn and hex head and can be manufactured in stainless steel upon request. For installation instructions and weight loads, reference technical data sheet.

Specifications

Physical Characteristics

Anchor Type
Sleeve
Nut Type
Hex
Thread Type
UNC
Anchor Diameter
1/2''
Head Diameter
1''
Anchor Length
4-3/8''
Thread Length
4''
Thread Per Inch
13
Thread Pitch/Thread Per Inch
1/2''-13
Material
Carbon Steel
Finish
Zinc Plated

Packaging Details

Standard Qty
25
Master Qty
150
Price Per
100
Package Length
6.40
Package Width
5.10
Package Height
3.40
Net Weight
0.19
Package Weight
4.81

Performance Data

Pre-Drill Size
1/2''
Minimum Embedment Depth
1-7/8''
Applications
Normal and Lightweight Concrete, Soft Concrete
Special Features
Pre-Assembled, Single Piece All Steel Sleeve, Versatile Use, Can Be Installed Through the Fixture
Cement Type
Various PSI

Certifications

RoHS Compliant
Yes
