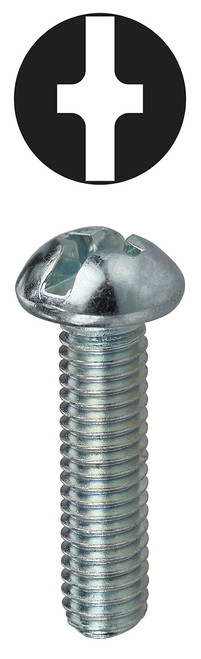

L.H. Dottie RMC10321 #10-32 x 1'' Phillips/Slotted Round Head Machine Screw

$0.11
SKU:
RMC10321
Shipping:
Calculated at Checkout
Product Type:
Machine Screws
interval quantity:
100
L.H. Dottie RMC10321 #10-32 x 1'' Phillips/Slotted Round Head Machine Screw

Product Overview

#10-32 x 1'' Phillips/Slotted Round Head Machine Screw

Machine Screws are uniformly threaded screws designed to be fastened into tapped holes, or used in conjunction with nuts to join two or more assemblies together. Typical applications for machine screws include fastening components of tools, appliances, machines, and electronic devices. ASME B18.3 covers the general requirements for the dimensions and performance of Steel Machine Screws.
Add to submittal

Specifications

Physical Characteristics

Type
Machine Screw
Drive Type
Slotted/Phillips
Head Type
Round
Thread Style
UNF
Thread Type
2A
Size
#10-32 x 1''
Dia./Thread Size
#10-32
Head Diameter
0.359'' - 0.334''
Length (in)
1''
Head Height
0.137'' - 0.123''
Thread Pitch/Thread Per Inch
32
Driver Size
#2
Material
Carbon Steel
Finish
Zinc Plated

Packaging Details

Standard Qty
100
Sleeve Qty
500
Master Qty
4000
Price Per
100
Package Length
1.54
Package Width
2.92
Package Height
3.66
Package Weight
0.92
Net Weight
0.01

Performance Data

Rockwell Hardness
HRB 100 - 70
Special Features
Invincibox, Zinc Plated
Applications
General Purpose

Certifications

RoHS Compliant
Yes
Meets/Exceeds
ASME B1.1

Other Information

Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
