Product Overview

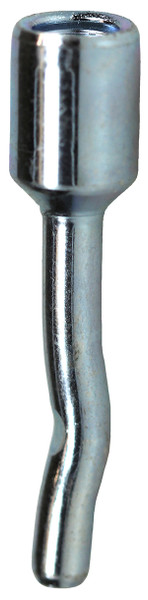

1/4'' Threaded Rod Spike
The Threaded Rod Spike is designed for use when hanging threaded rod from concrete ceilings. Using a special manufacturing process, the anchor forms an S shaped configuration at the working end of the anchor to create an expansion mechanism. As the anchor is driven into the hole, the expansion mechanism is compressed and flexes to the size of the hole. It is intended to be used for light weight hanging applications.
Specifications
Physical Characteristics
Anchor Type
Threaded Rod Spike
Size
1/4'' x 1-3/4''
Rod Size
1/4''
Anchor Diameter
1/4''
Anchor Length
1-3/4''
Material
Carbon Steel
Finish
Zinc Plated
Packaging Details
Standard Qty
100
Master Qty
600
Price Per
100
Package Length
5.60
Package Width
4.20
Package Height
2.70
Net Weight
0.03
Package Weight
2.65
Performance Data
Pre-Drill Size
3/16''
Applications
Concrete Ceilings, Overhead Installations
Special Features
One Piece Design, Vibration Resistant
Certifications
RoHS Compliant
No
Resources & Downloads
Other Information
Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
