Product Overview

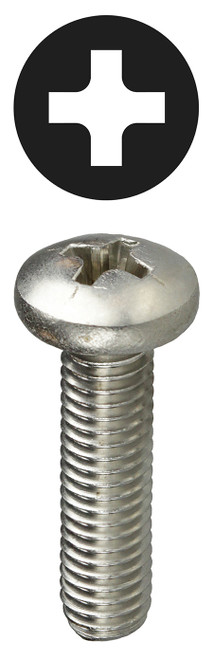

#6-32 x 2'' Stainless Steel Phillips Pan Head Machine Screw
Stainless Steel Machine Screws are uniformly threaded screws designed to be fastened into tapped holes, or used in conjunction with stainless steel nuts to join two or more assemblies together. Typical applications include fastening components of machines, tools, appliances, and electronic devices in environments where corrosion resistance is the primary concern. ASME B18.6.3 covers the general requirements for the dimensions and performance of Stainless Steel Machine Screws.
Specifications
Physical Characteristics
Type
Machine Screw
Drive Type
Phillips
Head Type
Pan
Thread Style
UNC
Thread Type
2A
Size
#6-32 x 2''
Dia./Thread Size
#6-32
Length (in)
2''
Driver Size
#1
Material
18-8 Stainless Steel
Packaging Details
Standard Qty
100
Sleeve Qty
500
Master Qty
3000
Price Per
100
Package Length
4.40
Package Width
7.00
Package Height
11.00
Package Weight
0.75
Net Weight
0.01
Performance Data
Rockwell Hardness
HRB 90 min.
Applications
General Purpose
Certifications
RoHS Compliant
Yes
Meets/Exceeds
ASME B18.6.3
Resources & Downloads
Other Information
Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
