Description

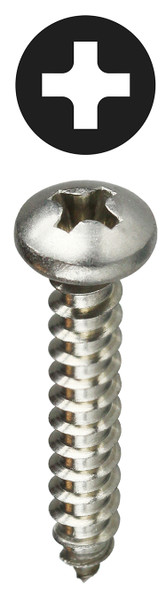

#10 x 1/2'' Stainless Steel Phillips Pan Head Sheet Metal Screw
Stainless Steel Sheet Metal Screws are self tapping screws with spaced threads and sharp points, that are capable of tapping their own threads. Typical applications for Stainless Steel Sheet Metal Screws include fastening light metal sheets, wood and plastic. They are manufactured with 18-8 stainless steel and are covered under the ASME B18.3 standard.
Specifications
Physical Characteristics
Type
Sheet Metal Screw
Drive Type
Phillips
Head Type
Pan
Thread Type
A
Point Type
A
Size
#10 x 1-1/2''
Dia./Thread Size
#10
Head Diameter
0.373'' - 0.357''
Head Height
0.133'' - 0.122''
Thread Pitch/Thread Per Inch
12
Driver Size
#2
Material
18-8 Stainless Steel
Packaging Details
Standard Qty
100
Sleeve Qty
500
Master Qty
4000
Price Per
100
Package Length
1.54
Package Width
2.92
Package Height
3.66
Package Weight
0.43
Net Weight
0.00
Performance Data
Special Features
Stainless Steel, Corrosion Resistant
Applications
Light Metal Sheets, Wood, and Plastic, Corrosive Environments
Certifications
RoHS Compliant
Yes
Meets/Exceeds
ASME B18.6.3
