Product Overview

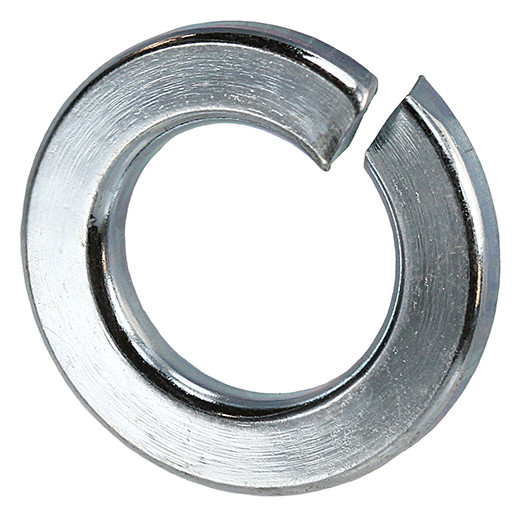

#6 Lock Washer
Split Lock Washers are manufactured with a trapezoidal cross section that deflects under load and can be used with or without a Hardened Flat Washer. They provide marginal resistance to vibration loosening and are ideal in applications where fasteners have a tendency to rotate or lose friction. Split Lock Washers are forged from hardened steel and zinc coated. They are covered by ASME B18.21.1.
Specifications
Physical Characteristics
Type
Lock Washer
Size
#6
Inside Diameter
0.148'' - 0.141''
Outside Diameter
0.250''
Material
Spring Steel
Finish
Zinc Plated
Packaging Details
Standard Qty
100
Sleeve Qty
500
Master Qty
4000
Price Per
100
Package Length
1.54
Package Width
2.92
Package Height
3.66
Package Weight
0.15
Net Weight
0.00
Performance Data
Rockwell Hardness
HRC 46-38
Special Features
Trapezodial Cross Section, Vibration Resistance
Applications
General Purpose
Certifications
RoHS Compliant
Yes
Resources & Downloads
Other Information
Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
