Product Overview

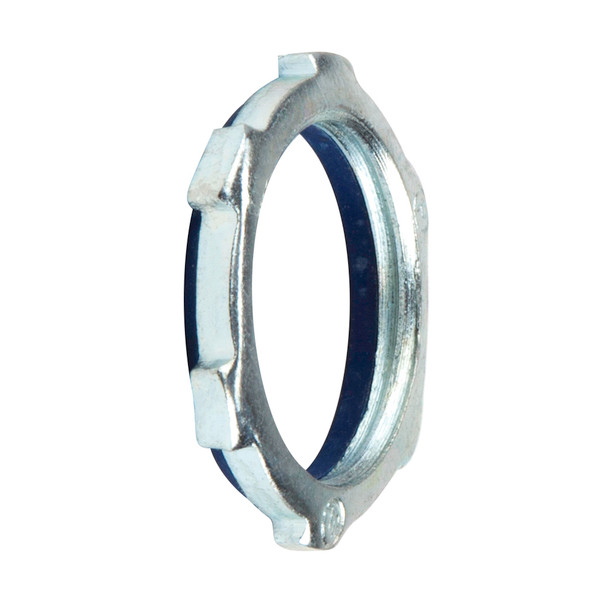

3'' Rigid Conduit Sealing Locknut
Sealing Locknuts are used to secure threaded fittings, rigid conduit, or IMC steel to enclosures. They are used in liquid tight applications to seal against water and oil.
Specifications
Physical Characteristics
Type
Sealing Locknut
Style
Sealing
Conduit Size (in)
3''
Outside Diameter (in)
4-1/8''
Thickness (in)
3/16''
Connection
Threaded
Material
Carbon Steel
Finish
Zinc Plated
Packaging Details
Includes
PVC Sealing Ring
Standard Qty
25
Master Qty
100
Price Per
100
Package Length
6.4
Package Width
6.9
Package Height
6.3
Net Weight
0.168
Package Weight
4.2
Performance Data
Applications
Fastens or Secures Conduit Into a Box or Panel with Liquid Tight Seal
Special Features
Liquid Tight, Notched Body to Provide Grip
For Use With
Threaded IMC & Rigid Conduit
Certifications
RoHS Compliant
Yes
Industry Standard
UL Listed
Resources & Downloads
Other Information
Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
