L.H. Dottie HLS14 1/4'' Short Lag Shield, 100 Pack

$44.99
SKU:
HLS14
Shipping:
Calculated at Checkout
Product Type:
Lag Shields

Product Overview

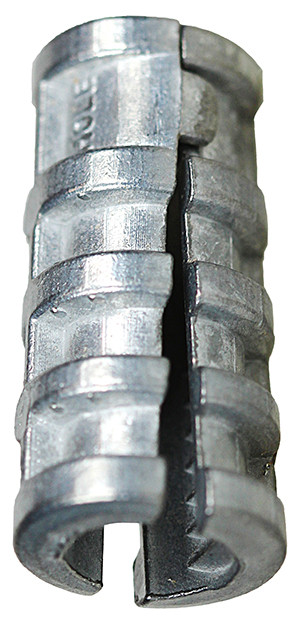

1/4'' Short Lag Shield

Lag Shields are a two piece die cast anchor that allows for lag screws to be used in materials such as mortar joints, poured concrete, brick and concrete blocks. After drilling the hole the anchor installs with finger pressure or light taps. The lag shield is manufactured in two different lengths; long and short. The shorter style is utilized for harder masonry materials that reduce drilling time, whereas the longer version is used for increased strength in softer or weaker masonry materials.

Specifications

Physical Characteristics

Anchor Type
Lag Shield
Anchor Diameter
1/4''
Anchor Length
1''
Material
Zamac Alloy

Packaging Details

Standard Qty
100
Master Qty
1000
Price Per
100
Package Length
5.50
Package Width
4.10
Package Height
2.70
Net Weight
0.02
Package Weight
2.26

Performance Data

Tensile Strength (lb)
1450 lbs
Pre-Drill Size
1/2''
Minimum Embedment Depth
1''
Applications
Mortar Joints, Poured Concrete, Brick, Concrete Blocks
Special Features
Internally Threaded, Easy Lag Screw Installation/Removal, Available in Short and Long Styles

Certifications

RoHS Compliant
No

Other Information

Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
