Product Overview

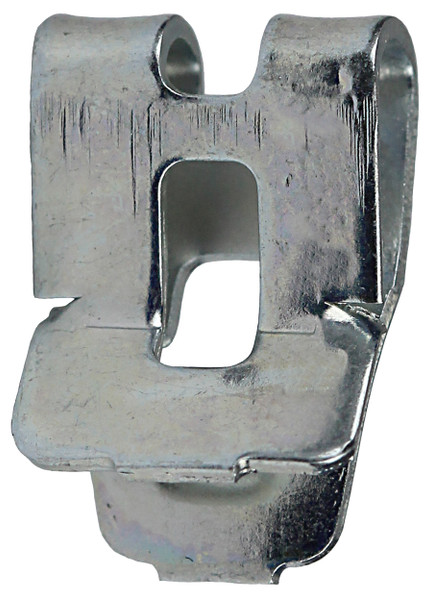

Ground Clip (Tuff Pack)
Grounding Clips are used to connect the grounding conductor of non-metallic sheathed cable to outlet boxes, or for connecting the grounding jumper from a receptacle to an outlet. They are intended to be installed on the top edge of a box to hold #10, #12 or #14 AWG copper wire. They can also be used to hold #10 or #12 AWG aluminum grounding conductors against the side wall.
Specifications
Physical Characteristics
Type
Grounding Clip
Wire Size (AWG)
#10, #12, & #14 (Aluminum/Copp
Connection
Clip On
Material
Carbon Steel
Finish
Zinc Plated
Packaging Details
Standard Qty
500
Master Qty
3000
Price Per
100
Package Length
3.8
Package Width
3.6
Package Height
3.4
Net Weight
0.0038
Package Weight
1.9
Performance Data
Applications
Secures Grounding Conductors in Outlet Boxes
For Use With
Aluminum & Copper Conductors
Certifications
RoHS Compliant
Yes
Resources & Downloads
Other Information
Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
