Product Overview

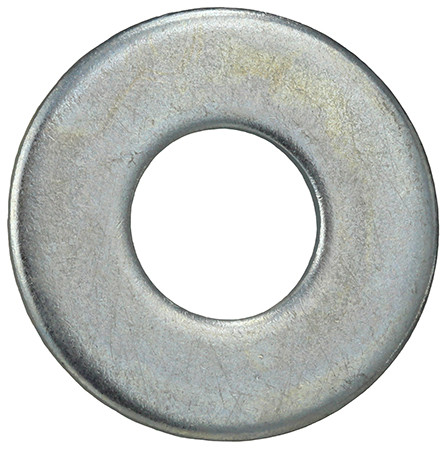

#6 SAE Flat Washer
Flat Washers are used to increase the surface area of fasteners, in order to evenly distribute the force applied when tightening them to a surface. They are also used to prevent loosening due to vibration, to stop the bolt or screw from pulling through, and act as spacers. They are manufactured from steel and zinc-plated and are manufactured to ASME B18.21.1 standard.
Specifications
Physical Characteristics
Type
Flat Washer
Size
#6
Inside Diameter
0.164'' - 0.151''
Outside Diameter
0.390'' - 0.370''
Thickness (in)
0.065'' - 0.036''
Material
Unhardened Carbon Steel
Finish
Zinc Plated
Packaging Details
Standard Qty
100
Sleeve Qty
500
Master Qty
4000
Price Per
100
Package Length
1.54
Package Width
2.92
Package Height
3.66
Package Weight
0.20
Net Weight
0.00
Performance Data
Special Features
Vibration Resistance, Acts as Spacer, Increases Surface Area
Applications
General Purpose
Certifications
RoHS Compliant
Yes
Meets/Exceeds
ASME B18.21.1
Resources & Downloads
Other Information
Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
