Description

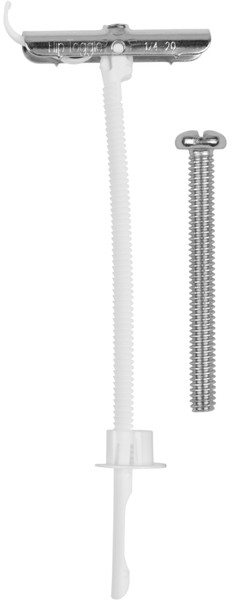

1/4'' Flip Toggle Anchor Kit w/ Pan Head Combo Drive Screws
The Flip Toggle Anchor is a single piece, nylon body anchor with a metal tilting head ideal for use in drywall, plaster and hollow wall concrete blocks. It's unique tilting mechanism ensures a trouble-free installation that yields twice the strength of a regular toggle bolt of the same bolt diameter.
Specifications
Physical Characteristics
Anchor Type
Flip Toggle
Drive Type
Phillips/Slotted/Square
Head Type
Pan
Screw Size
1/4''-20 x 2-1/2''
Anchor Diameter
1/4''
Thread Pitch/Thread Per Inch
1/4''-20
Number of Pieces
10
Packaging Details
Kit Contains
(10) Flip Toggle Anchors, (10) 1/4''-20 x 2-1/2'' Pan Phillips/Slotted Machine Screw
Standard Qty
1
Sleeve Qty
0
Master Qty
10
Price Per
1
Package Length
9.60
Package Width
3.50
Package Height
1.50
Net Weight
0.68
Package Weight
0.68
Performance Data
Tension Strength
1/2'' Drywall: 148lbs, 5/8'' Drywall: 240lbs, Hollow Concrete Block: 1070lbs
Safe Tension Load
1/2'' Drywall: 74lbs, 5/8'' Drywall: 120lbs, Hollow Concrete Block: 535lb
Shear Strength
1/2'' Drywall: 274lbs, 5/8'' Drywall: 418lbs, Hollow Concrete Block: 870lbs
Safe Shear Load
1/2'' Drywall: 137lbs, 5/8'' Drywall: 209lbs, Hollow Concrete Block: 600lb
Grip Range
1/2'' to 2-1/8''
Hole Diameter
1/2''
Applications
Drywall, Hollow Block, Walls, and Ceilings
Special Features
Twice as Strong as Toggle Bolt, Fast and Easy Installation, Suitable for Overhead Applications, One Strap Design, Only Requires 1/2'' Hole, Used with Any Bolt Length up to 3-3/4''
Certifications
RoHS Compliant
Yes
