Product Overview

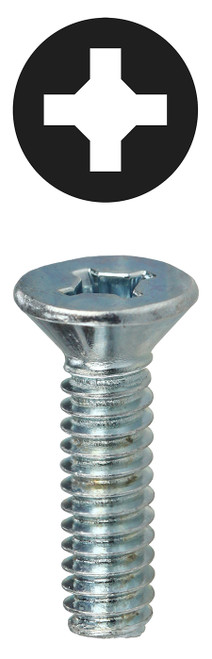

#6-32 x 1'' Phillips/Square Flat Head Machine Screw
Machine Screws are uniformly threaded screws designed to be fastened into tapped holes, or used in conjunction with nuts to join two or more assemblies together. Typical applications for machine screws include fastening components of tools, appliances, machines, and electronic devices. ASME B18.3 covers the general requirements for the dimensions and performance of Steel Machine Screws.
Specifications
Physical Characteristics
Type
Machine Screw
Drive Type
Square/Phillips
Head Type
Flat
Thread Style
UNC
Thread Type
2A
Size
#6-32 x 1''
Dia./Thread Size
#6-32
Head Diameter
0.262'' - 0.238''
Length (in)
1''
Head Height
0.083''
Thread Pitch/Thread Per Inch
32
Driver Size
#1
Material
Carbon Steel
Finish
Zinc Plated
Packaging Details
Standard Qty
100
Sleeve Qty
500
Master Qty
4000
Price Per
100
Package Length
1.54
Package Width
2.92
Package Height
3.66
Package Weight
0.49
Net Weight
0.00
Performance Data
Rockwell Hardness
HRB 100 - 70
Special Features
Invincibox, Zinc Plated, Corrosion Resistant
Applications
General Purpose
Certifications
RoHS Compliant
Yes
Meets/Exceeds
ASME B18.6.3
Resources & Downloads
Other Information
Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
