Product Overview

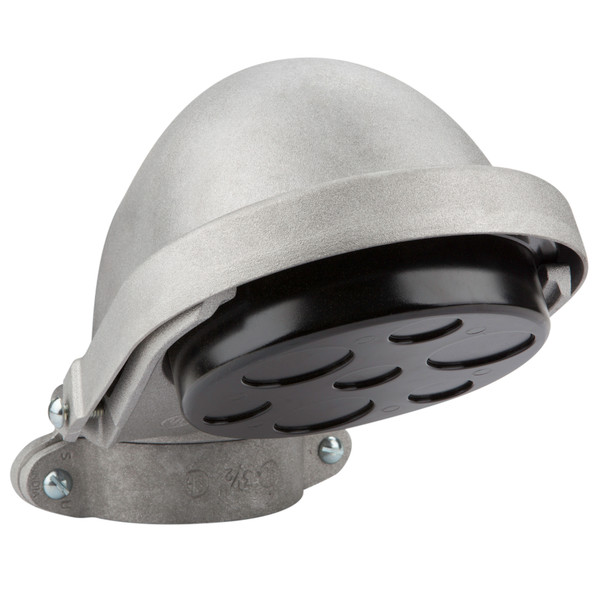

3'' Entrance Cap (Clamp On)
Entrance Caps are an overhead weatherproof service entry drop point that is attached to EMT, rigid, or IMC conduit, where overhead power wires enter a building. It is an enclosed aluminum clamp on style fitting that has electrical grade Phenolic insulators equipped with multiple holes to accept multiple service entrance cables.
Specifications
Physical Characteristics
Type
Entrance Cap
Conductor Size
(3) 7/8'', (1) 1'', (3) 1-5/16''
Size
3''
Connection
Clamp On
Material
Die Cast Aluminum
Number of Holes
7
Packaging Details
Standard Qty
1
Master Qty
1
Price Per
100
Package Length
11.2598
Package Width
7.7165
Package Height
8.0315
Net Weight
3.4
Package Weight
3.4
Performance Data
Insulation
Phenolic
Applications
Permits Weather Resistant Entrance for Type SE Cable
For Use With
EMT, IMC, or Rigid
Environmental Conditions
Wet Locations
Certifications
RoHS Compliant
Yes
Industry Standard
UL & CSA Listed
Resources & Downloads
Other Information
Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
