Product Overview

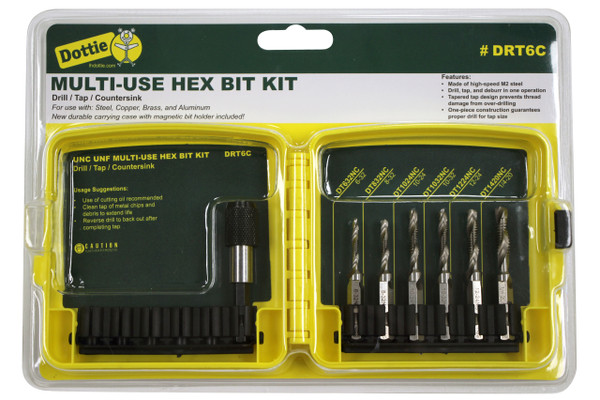

6 Pc Drill & Tap Bit Kit
The DRT6C is an assortment of six different drill & tap bits that are manufactured from High Speed M2 Steel. They are used to create screw threads or countersunk holes for easy connections and smooth finishes. Their 135 self-centering split point allow them to drill, tap, and deburr in one operation and are designed for use in up to 10 gauge metal.
Specifications
Physical Characteristics
Type
Drill/Tap Kit
Point Type
135° Split
Shank Type
Quick Change
Thread Type
UNC & UNF
Thread Size
#6-32, #8-32, #10-24, #10-32, #12-24, 1/4''-20
Drill Bit Size
#16, #21, #26, #29, #36, #7
Length (in)
2'' & 2-1/4''
Material
M2 High Speed Steel
Finish
Polished
Construction
One-Piece
Number of Flutes
One
Flute Length
7/8''
Packaging Details
Number of Pieces
6
Standard Qty
1
Master Qty
1
Price Per
1
Package Length
9.2
Package Width
4.6
Package Height
1.2
Package Weight
0.3
Net Weight
0.3
Performance Data
Intended Cutting Material
Aluminum, Brass, Copper, and Steel
RPM
300
Rockwell Hardness
63 - 65 HRC
Split Drill Point
135°
Applications
Drill, Tap, & Deburr in One Operation Up to 10 Gauge Metal
Certifications
RoHS Compliant
Yes
Industry Standards
ANSI
Resources & Downloads
Other Information
Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
