Product Overview

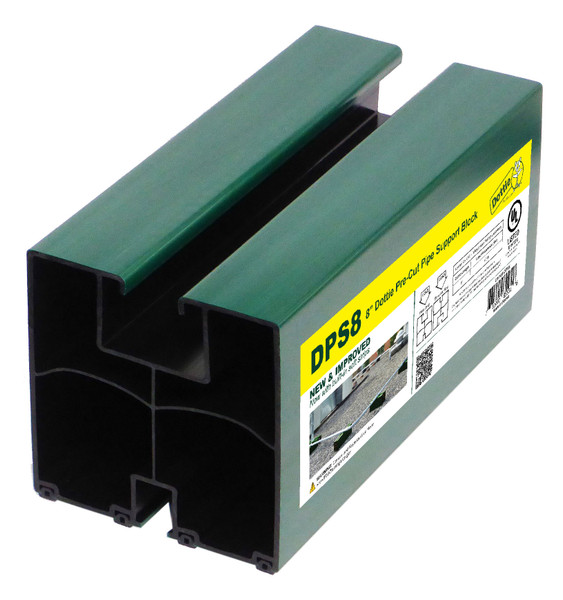

8'' Rooftop Pipe Support
The DPS8 is a pipe support constructed of high strength polymers ABS/ASA for increased structural support and UV resistance. It's Dual Channel Technology creates the most versatile pipe support in the industry. Strut Clamps can be fastened to the large channel while conduit hangers and leveling systems can be fastened to the small channel. A single 8'' support has a load resistance of 739 lbs. This versatile support can be used in a variety of rooftop applications such as, plumbing, HVAC, conduit, gas piping, and cable tray.
Specifications
Physical Characteristics
Type
Pipe Support
Rod Size
3/8''
Size
8''
Length (in)
8''
Width (in)
4''
Height (in)
4''
Material
ABS/ASA
Color
Green
Packaging Details
Standard Qty
1
Master Qty
9
Price Per
1
Package Length
8
Package Width
4
Package Height
3.9
Net Weight
0.8166
Package Weight
0.8166
Performance Data
Load Capacity
130 lbs/in
Applications
Supports Rooftop Applications of Conduit, Cable Tray, HVAC Equipment, Plumbing, and Gas Piping
Special Features
Cuts Costs, Increases Installation Flexibility, UV Stabilized
Environmental Conditions
Water & Weatherproof
Certifications
RoHS Compliant
Yes
Industry Standard
UL Listed & ISO Certified
Meets/Exceeds
ISO Certified
Resources & Downloads
Other Information
Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
