Product Overview

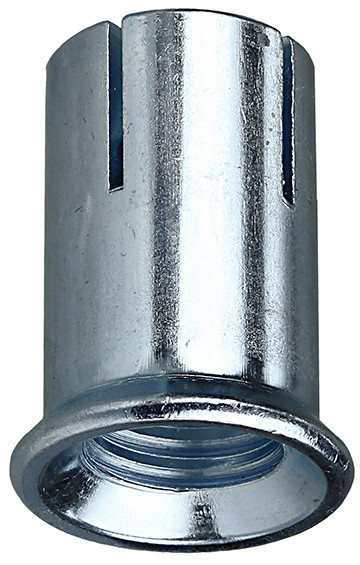

3/8''-20 Mini Drop-In Anchor
Mini Drop-In Anchors are manufactured with an internally threaded, all-steel exterior shell that features an expansion cone insert used to anchor into concrete base materials. They are intended to be used in shallow embedment applications and can be used with any head style screw. The screw can easily be removed, loosened, or re-tightened if needed.
Specifications
Physical Characteristics
Anchor Type
Drop In
Thread Type
UNC
Anchor Diameter
3/8''
Anchor Length
3/4''
Thread Length
13/32''
Thread Pitch/Thread Per Inch
3/8''-16
Material
Carbon Steel
Finish
Zinc Plated
Packaging Details
Standard Qty
50
Master Qty
500
Price Per
100
Package Length
5.60
Package Width
4.10
Package Height
2.60
Net Weight
0.03
Package Weight
1.70
Performance Data
Pre-Drill Size
1/2''
Applications
Pipe Hanging, Overhead Anchoring, Hanging Strut, Sprinkler Systems and Removable Anchor Points
Special Features
Zinc Plated, Easy Bolt Installation/Removal, Lip for Flush Installation, Expansion Cone Insert
Cement Type
Various PSI
Certifications
RoHS Compliant
Yes
Resources & Downloads
Other Information
Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
