Product Overview

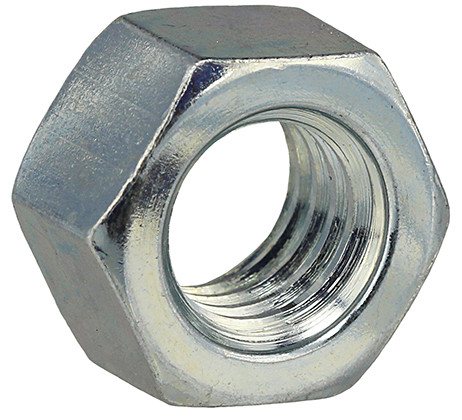

5/8''-11 Grade 5 Hex Nut
Grade 5 Hex Nuts are manufactured from carbon steel and are used to connect both metal and wood components. They are intended to be used in conjunction with bolts, screws, studs, threaded rod and any other fastener that has machine screw threads. Typical applications for Grade 5 Hex Nuts include scenarios where medium strength of 120,000 psi is required. They are manufactured to the SAE J995-2017 standard.
Specifications
Physical Characteristics
Type
Grade 5 Hex Nut
Nut Type
Hex
Grade
5
Thread Style
UNC
Thread Type
2B
Size
5/8''
Dia./Thread Size
5/8''-11
Fits Bolt Sizes
5/8''
Thread Pitch/Thread Per Inch
11
Material
Carbon Steel
Finish
Zinc Plated
Packaging Details
Standard Qty
25
Sleeve Qty
125
Master Qty
750
Price Per
100
Package Length
2.18
Package Width
2.92
Package Height
4.31
Package Weight
1.85
Net Weight
0.07
Performance Data
Rockwell Hardness
HRC 32 max.
Special Features
Grade 5 Medium Strength
Applications
General Purpose
Certifications
RoHS Compliant
Yes
Meets/Exceeds
ASME B18.2.2
Resources & Downloads
Other Information
Dottie orders are subject to a $200 combined order minimum. Please contact us about possible orders under this amount.
